Type | Description |
---|---|
Series: | L12 |
Package: | Retail Package |
Part Status: | Active |
Type: | DC Motor |
Function: | Linear Actuator |
Motor Type: | Brushed |
Voltage - Rated: | 12VDC |
RPM: | - |
Torque - Rated (oz-in / mNm): | 287.76 / 80000 (Linear) |
Power - Rated: | - |
Encoder Type: | - |
Size / Dimension: | - |
Diameter - Shaft: | 0.354" (9.00mm) |
Length - Shaft and Bearing: | 1.969" (50.00mm) - Stroke Length |
Mounting Hole Spacing: | 4.015" (102.00mm) |
Termination Style: | Wire Leads with Connector |
Features: | Potentiometer Feedback |
Gear Reduction Ratio: | 210 |
Torque - Max Momentary (oz-in / mNm): | - |
Operating Temperature: | -10°C ~ 50°C |

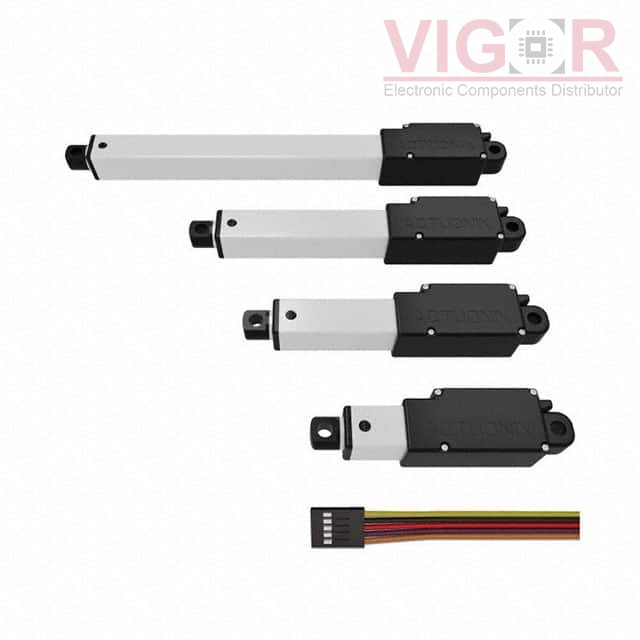

L12-P MICRO LINEAR ACTUATOR
