Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 20DAM10D2U-L is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | 20DAM-L |
Package: | Bulk |
Part Status: | Active |

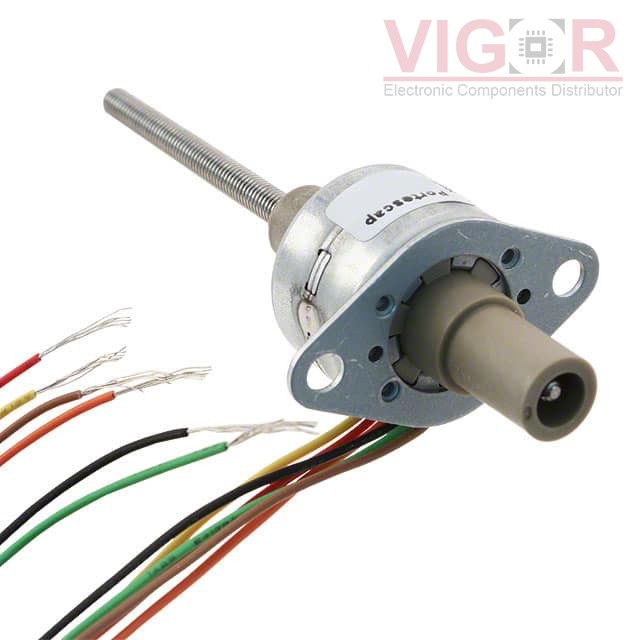

Type: | Permanent Magnet Linear Actuator |
Coil Type: | Unipolar |
Voltage - Rated: | 12VDC |
Current Rating (Amps): | 100 mA |
Steps per Revolution: | 24 |
Step Angle: | 15° |
Accuracy: | - |
Torque - Holding (oz-in / mNm): | - |
Size / Dimension: | Round - 0.807" Dia (20.50mm) |
NEMA Frame Size: | - |
Diameter - Shaft: | 0.135" (3.43mm) |
Length - Shaft and Bearing: | 3.150" (80.00mm) |
Mounting Hole Spacing: | 1.030" (26.16mm) |
Termination Style: | Wire Leads |
Operating Temperature: | -20°C ~ 70°C |
Coil Resistance: | 115.2 Ohms |
Features: | Threaded Shaft |
