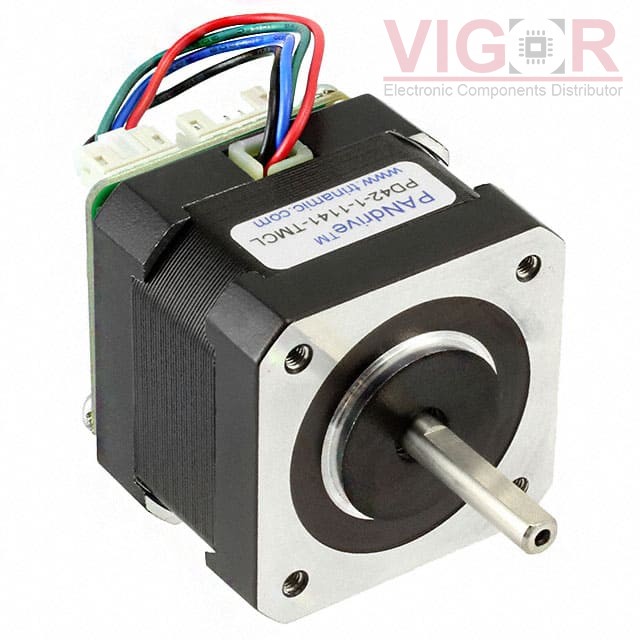

PD42-1-1141

PD42-1-1141

Image is for reference,
please contact us to get the real picture

Part No :

PD42-1-1141

Manufacturer
TRINAMIC Motion Control GmbH
Description
STEPPER MOTOR HYBRID BIPOLAR 24V
Catalog
Stepper Motors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
PD42-1-1141 PDF
Availability
92 pieces
Unit Price
$179.28000

Current price of PD42-1-1141 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PD42-1-1141 Specifications
Type Description
Series:PANdrive™
Package:Box
Part Status:Active
Type:Hybrid
Coil Type:Bipolar
Voltage - Rated:24VDC
Current Rating (Amps):2 A
Steps per Revolution:200
Step Angle:1.8°
Accuracy:±5%
Torque - Holding (oz-in / mNm):38.2 / 270
Size / Dimension:Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size:17
Diameter - Shaft:0.197" (5.00mm)
Length - Shaft and Bearing:0.945" (24.00mm)
Mounting Hole Spacing:-
Termination Style:Wire Leads with Connector
Operating Temperature:-
Coil Resistance:-
Features:Integrated Controller, Flatted Shaft
