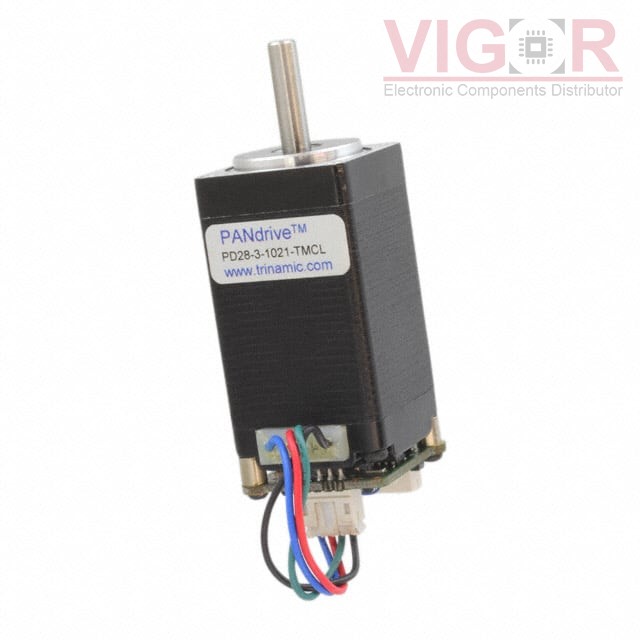

PD28-3-1021-TMCL

PD28-3-1021-TMCL

Image is for reference,
please contact us to get the real picture

Part No :

PD28-3-1021-TMCL

Manufacturer
TRINAMIC Motion Control GmbH
Description
STEPPER MOTOR HYBRID BIPOLAR 24V
Catalog
Stepper Motors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
PD28-3-1021-TMCL PDF
Availability
0 pieces
Unit Price
$199.38000

Current price of PD28-3-1021-TMCL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PD28-3-1021-TMCL Specifications
Type Description
Series:PANdrive™
Package:Box
Part Status:Active
Type:Hybrid
Coil Type:Bipolar
Voltage - Rated:24VDC
Current Rating (Amps):700 mA
Steps per Revolution:200
Step Angle:1.8°
Accuracy:-
Torque - Holding (oz-in / mNm):17 / 120
Size / Dimension:Square - 1.100" x 1.100" (28.00mm x 28.00mm)
NEMA Frame Size:11
Diameter - Shaft:0.197" (5.00mm)
Length - Shaft and Bearing:0.787" (20.00mm)
Mounting Hole Spacing:0.906" (23.00mm)
Termination Style:Wire Leads with Connector
Operating Temperature:-
Coil Resistance:-
Features:Integrated Controller, Flatted Shaft
