SH2285-5631

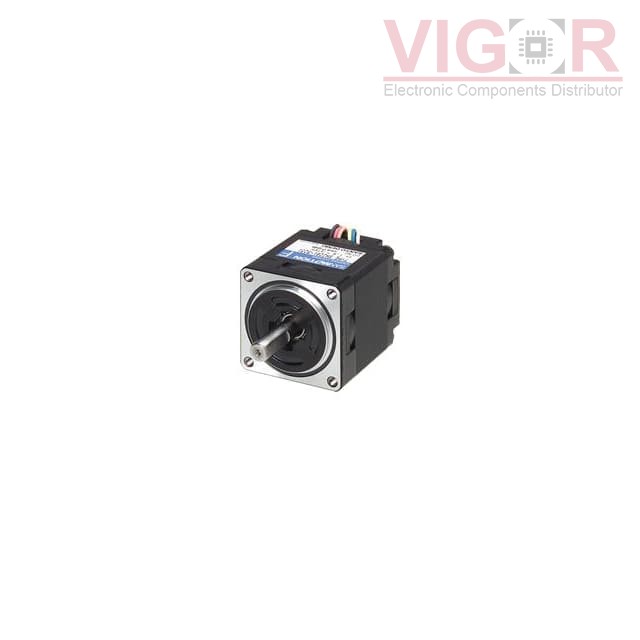

Image is for reference,
please contact us to get the real picture

Part No :: SH2285-5631

Manufacturer: Sanyo Denki SanMotion Products

Description: STEP, F2, SQ.28, 1.8, , , BIPOLA

Catalog: Stepper Motors

Shipped from: HK warehouse

Expected Shipping Date: Jul 18 - Jul 22 2025

DataSheet: SH2285-5631 PDF

Availability: 3 pieces

Unit Price: ~~$51.48000~~

Current price of SH2285-5631 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SH2285-5631 Specifications

Type	Description
Series:	SH
Package:	Box
Part Status:	Active
Type:	Hybrid, Dual Shaft
Coil Type:	Bipolar
Voltage - Rated:	24VDC
Current Rating (Amps):	500 mA
Steps per Revolution:	200
Step Angle:	1.8°
Accuracy:	-
Torque - Holding (oz-in / mNm):	20.53 / 145
Size / Dimension:	-
NEMA Frame Size:	-
Diameter - Shaft:	0.197" (5.00mm)
Length - Shaft and Bearing:	0.591" (15.00mm)
Mounting Hole Spacing:	0.906" (23.00mm)
Termination Style:	Wire Leads
Operating Temperature:	-10°C ~ 50°C
Coil Resistance:	15 Ohms
Features:	-
