23H118D10B

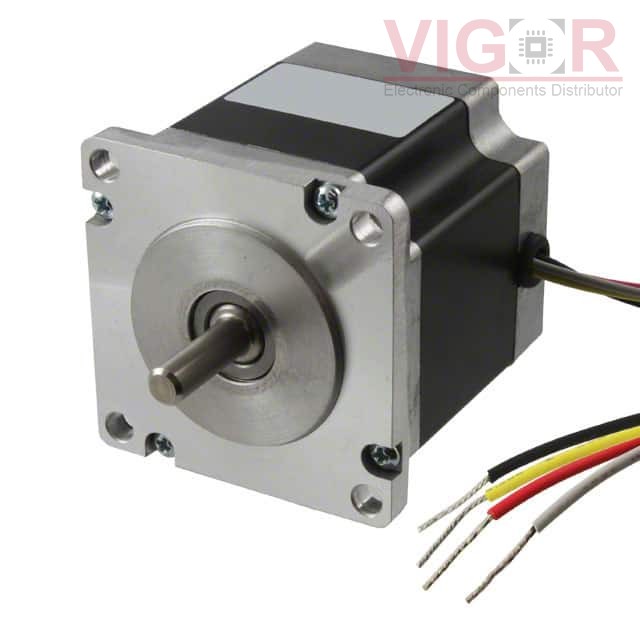

Image is for reference,
please contact us to get the real picture

Part No :: 23H118D10B

Manufacturer: Portescap

Description: STEP MOTOR HYBRID BIPOLAR 6.84V

Catalog: Stepper Motors

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: 23H118D10B PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of 23H118D10B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

23H118D10B Specifications

Type	Description
Series:	H3
Package:	Bulk
Part Status:	Obsolete
Type:	Hybrid
Coil Type:	Bipolar
Voltage - Rated:	6.84VDC
Current Rating (Amps):	1 A
Steps per Revolution:	200
Step Angle:	1.8°
Accuracy:	±5%
Torque - Holding (oz-in / mNm):	180 / 1271
Size / Dimension:	Square - 2.250" x 2.250" (57.15mm x 57.15mm)
NEMA Frame Size:	23
Diameter - Shaft:	0.250" (6.35mm)
Length - Shaft and Bearing:	0.810" (20.57mm)
Mounting Hole Spacing:	1.856" (47.14mm)
Termination Style:	Wire Leads
Operating Temperature:	-20°C ~ 40°C
Coil Resistance:	6.84 Ohms
Features:	Round Shaft

Please confirm the specifications of the products when ordering.
