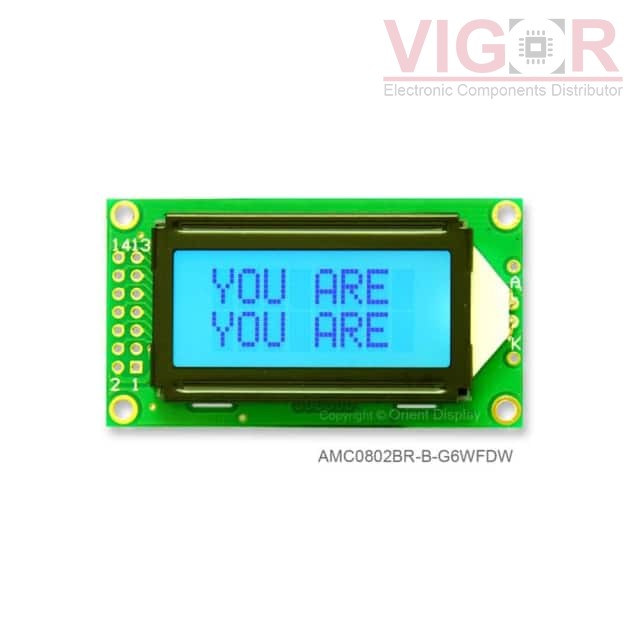

AMC0802BR-B-G6WFDW

Image is for reference,
please contact us to get the real picture

Part No :: AMC0802BR-B-G6WFDW

Manufacturer: Orient Display

Description: LCD COB CHAR 8X2 GRAY TRANSF

Catalog: Display Modules - LCD, OLED Character and Numeric

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: AMC0802BR-B-G6WFDW PDF

Availability: 111 pieces

Unit Price: ~~$5.69000~~

Current price of AMC0802BR-B-G6WFDW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AMC0802BR-B-G6WFDW Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Number of Characters:	16
Display Format:	8 x 2
Character Format:	5 x 8 Dots
Display Type:	STN - Super-Twisted Nematic
Display Mode:	Transflective
Character Size:	5.56mm H x 2.96mm W
Outline L x W x H:	58.00mm x 32.00mm x 14.00mm
Viewing Area:	38.00mm L x 16.00mm W
Backlight:	LED - White
Voltage - Supply:	4.5V ~ 5.5V
Dot Size:	0.56mm W x 0.66mm H
Interface:	Parallel, 8-Bit
Controller Type:	S6A0069
Operating Temperature:	-20°C ~ 70°C
Text Color:	Blue
Background Color:	Gray
