NHD-0220CW-AB3

NHD-0220CW-AB3

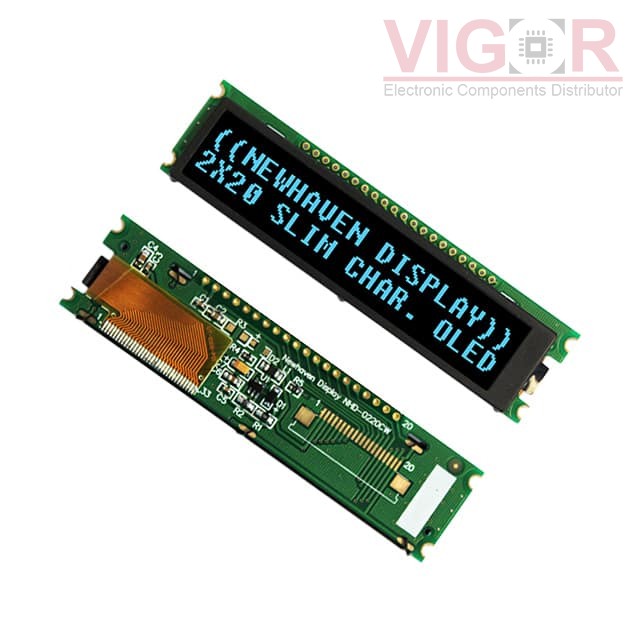

Image is for reference,
please contact us to get the real picture

Part No :

NHD-0220CW-AB3

Manufacturer
Newhaven Display, Intl.
Description
LCD MODULE 40 DIG 20 X 2 PASSIVE
Catalog
Display Modules - LCD, OLED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
NHD-0220CW-AB3 PDF
Availability
586 pieces
Unit Price
$29.43000

Current price of NHD-0220CW-AB3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NHD-0220CW-AB3 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Number of Characters:40
Display Format:20 x 2
Character Format:5 x 8 Dots
Display Type:OLED
Display Mode:Passive
Character Size:5.57mm H x 3.22mm W
Outline L x W x H:92.00mm x 23.30mm x 2.50mm
Viewing Area:77.92mm L x 16.28mm W
Backlight:-
Voltage - Supply:2.4V ~ 5.5V
Dot Size:0.62mm W x 0.67mm H
Interface:Parallel, 8-Bit, I²C, SPI
Controller Type:US2066
Operating Temperature:-40°C ~ 85°C
Text Color:Blue
Background Color:Black
