NHD-0420AZ-FL-YBW-33V3

NHD-0420AZ-FL-YBW-33V3

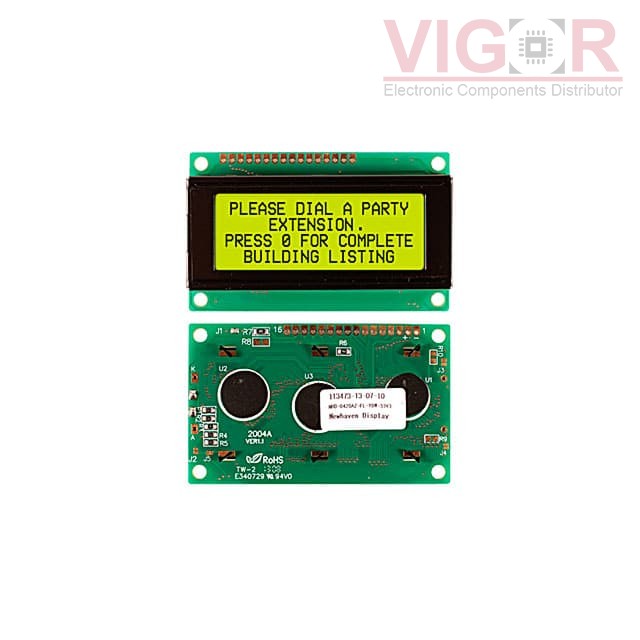

Image is for reference,
please contact us to get the real picture

Part No :

NHD-0420AZ-FL-YBW-33V3

Manufacturer
Newhaven Display, Intl.
Description
LCD MOD 80DIG 20X4 TRANS YLW/GRN
Catalog
Display Modules - LCD, OLED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
NHD-0420AZ-FL-YBW-33V3 PDF
Availability
927 pieces
Unit Price
$19.29000

Current price of NHD-0420AZ-FL-YBW-33V3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NHD-0420AZ-FL-YBW-33V3 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Number of Characters:80
Display Format:20 x 4
Character Format:5 x 8 Dots
Display Type:STN - Super-Twisted Nematic
Display Mode:Transflective
Character Size:4.03mm H x 2.30mm W
Outline L x W x H:77.00mm x 47.00mm x 14.50mm
Viewing Area:60.00mm L x 22.00mm W
Backlight:LED - Yellow/Green
Voltage - Supply:3.1V ~ 3.5V
Dot Size:0.42mm W x 0.46mm H
Interface:Parallel
Controller Type:SPLC780D OR ST7066U
Operating Temperature:-20°C ~ 70°C
Text Color:Gray
Background Color:Green
