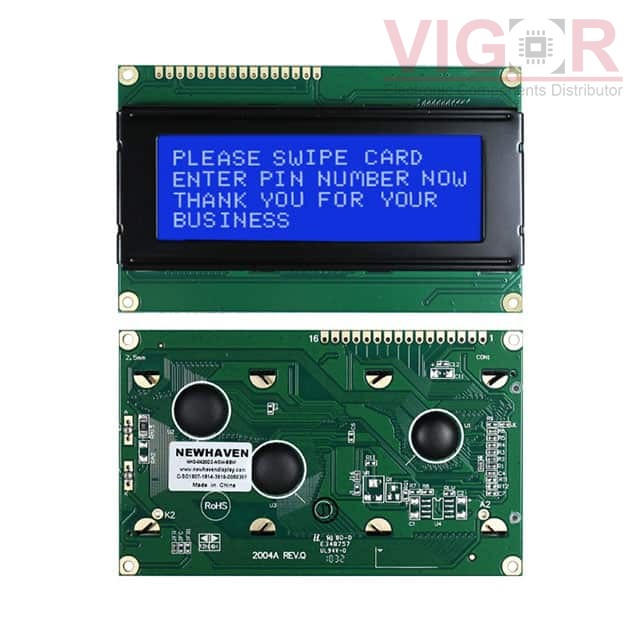

NHD-0420DZ-NSW-BBW

NHD-0420DZ-NSW-BBW

Image is for reference,
please contact us to get the real picture

Part No :

NHD-0420DZ-NSW-BBW

Manufacturer
Newhaven Display, Intl.
Description
LCD MOD 80DIG 20X4 TRANSMISV WHT
Catalog
Display Modules - LCD, OLED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
NHD-0420DZ-NSW-BBW PDF
Availability
690 pieces
Unit Price
$24.99000

Current price of NHD-0420DZ-NSW-BBW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NHD-0420DZ-NSW-BBW Specifications
Type Description
Series:-
Package:Box
Part Status:Active
Number of Characters:80
Display Format:20 x 4
Character Format:5 x 8 Dots
Display Type:STN - Super-Twisted Nematic
Display Mode:Transmissive
Character Size:4.75mm H x 2.95mm W
Outline L x W x H:98.00mm x 60.00mm x 13.60mm
Viewing Area:77.00mm L x 25.20mm W
Backlight:LED - White
Voltage - Supply:4.5V ~ 5.5V
Dot Size:0.55mm W x 0.55mm H
Interface:Parallel
Controller Type:SPLC780D OR ST7066U
Operating Temperature:-20°C ~ 70°C
Text Color:White
Background Color:Blue
