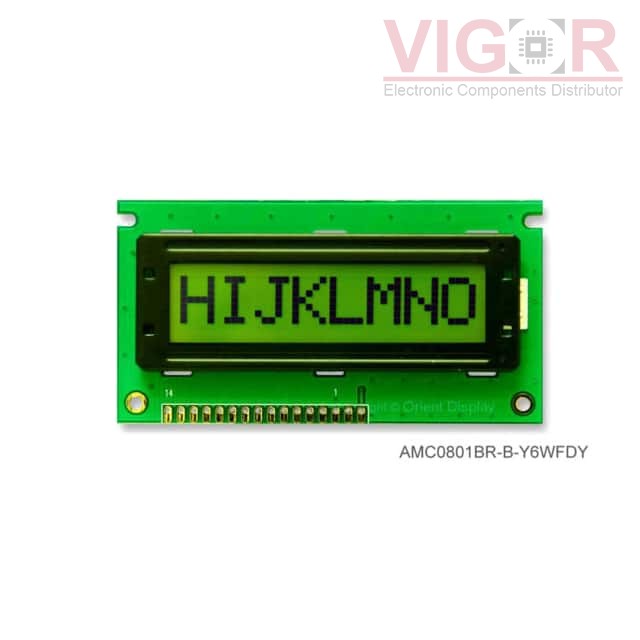

AMC0801BR-B-Y6WFDY

AMC0801BR-B-Y6WFDY

Image is for reference,
please contact us to get the real picture

Part No :

AMC0801BR-B-Y6WFDY

Manufacturer
Orient Display
Description
LCD COB CHAR 8X1 Y/G TRANSF
Catalog
Display Modules - LCD, OLED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
AMC0801BR-B-Y6WFDY PDF
Availability
47 pieces
Unit Price
$6.58000

Current price of AMC0801BR-B-Y6WFDY is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AMC0801BR-B-Y6WFDY Specifications
Type Description
Series:-
Package:Box
Part Status:Active
Number of Characters:8
Display Format:8 x 1
Character Format:5 x 8 Dots
Display Type:STN - Super-Twisted Nematic
Display Mode:Transflective
Character Size:10.75mm H x 6.45mm W
Outline L x W x H:84.00mm x 44.00mm x 13.00mm
Viewing Area:61.00mm L x 15.80mm W
Backlight:LED - Yellow/Green
Voltage - Supply:4.5V ~ 5.5V
Dot Size:1.25mm W x 1.30mm H
Interface:Parallel, 8-Bit
Controller Type:S6A0069
Operating Temperature:-20°C ~ 70°C
Text Color:Dark Blue
Background Color:Yellow/Green
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT AMC2002CR-B-Y6WFDY-I2C

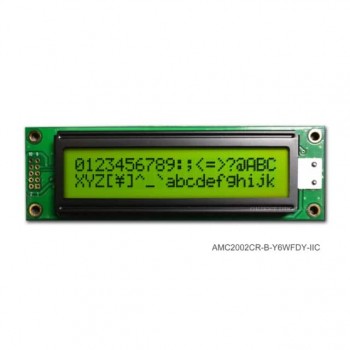

AMC2002CR-B-Y6WFDY-I2C

LCD COB CHAR 20X2 Y/G TRANSF I2C
HOT EA W162-X9LG

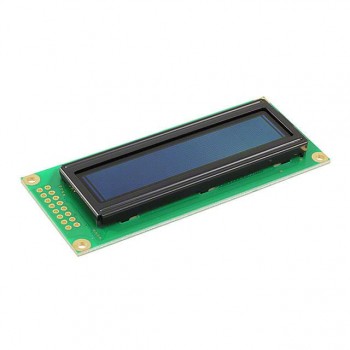

EA W162-X9LG
