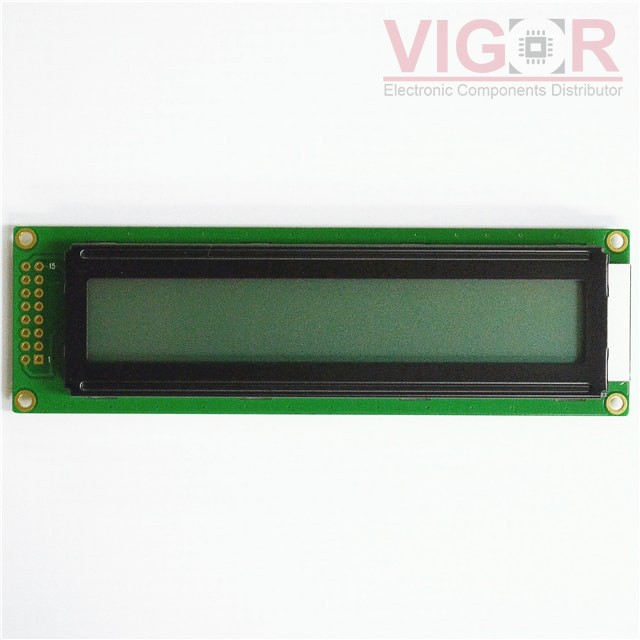

AMC2402AR-B-G6WFDW

Image is for reference,
please contact us to get the real picture

Part No :: AMC2402AR-B-G6WFDW

Manufacturer: Orient Display

Description: 24X2 CHARACTER STN GRAY

Catalog: Display Modules - LCD, OLED Character and Numeric

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: AMC2402AR-B-G6WFDW PDF

Availability: 100 pieces

Unit Price: ~~$11.23000~~

Current price of AMC2402AR-B-G6WFDW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AMC2402AR-B-G6WFDW Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Number of Characters:	48
Display Format:	24 x 2
Character Format:	5 x 8 Dots
Display Type:	STN - Super-Twisted Nematic
Display Mode:	Transflective
Character Size:	3.20mm H x 5.55mm W
Outline L x W x H:	118.00mm x 36.00mm x 13.60mm
Viewing Area:	93.50mm L x 16.00mm W
Backlight:	LED - White
Voltage - Supply:	5V
Dot Size:	0.60mm W x 0.65mm H
Interface:	Parallel
Controller Type:	ST7066Uv22
Operating Temperature:	-20°C ~ 70°C
Text Color:	Blue
Background Color:	-

Please confirm the specifications of the products when ordering.
