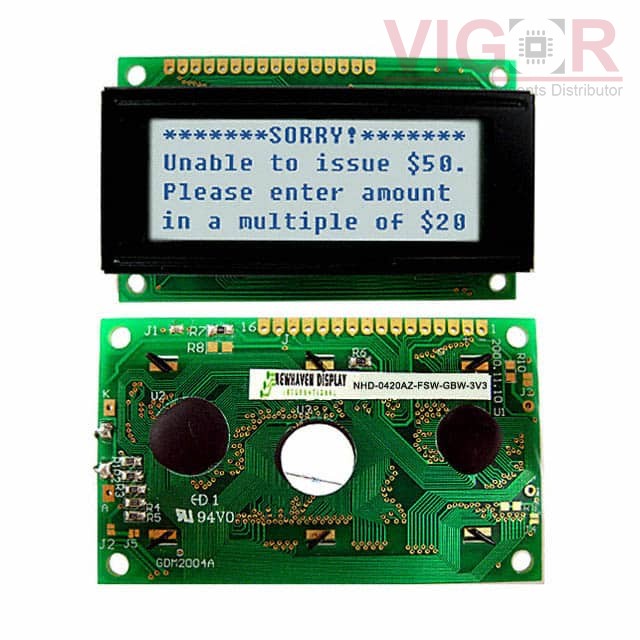

NHD-0420AZ-FSW-GBW-3V3

NHD-0420AZ-FSW-GBW-3V3

Image is for reference,
please contact us to get the real picture

Part No :

NHD-0420AZ-FSW-GBW-3V3

Manufacturer
Newhaven Display, Intl.
Description
LCD MOD 80DIG 20X4 TRANSFLCT WHT
Catalog
Display Modules - LCD, OLED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
NHD-0420AZ-FSW-GBW-3V3 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of NHD-0420AZ-FSW-GBW-3V3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NHD-0420AZ-FSW-GBW-3V3 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Number of Characters:80
Display Format:20 x 4
Character Format:5 x 8 Dots
Display Type:STN - Super-Twisted Nematic
Display Mode:Transflective
Character Size:4.03mm H x 2.30mm W
Outline L x W x H:77.00mm x 47.00mm x 14.50mm
Viewing Area:60.00mm L x 22.00mm W
Backlight:LED - White
Voltage - Supply:2.7V ~ 3.3V
Dot Size:0.42mm W x 0.46mm H
Interface:Parallel
Controller Type:-
Operating Temperature:-20°C ~ 70°C
Text Color:Gray
Background Color:White
