LSHD-5503

LSHD-5503

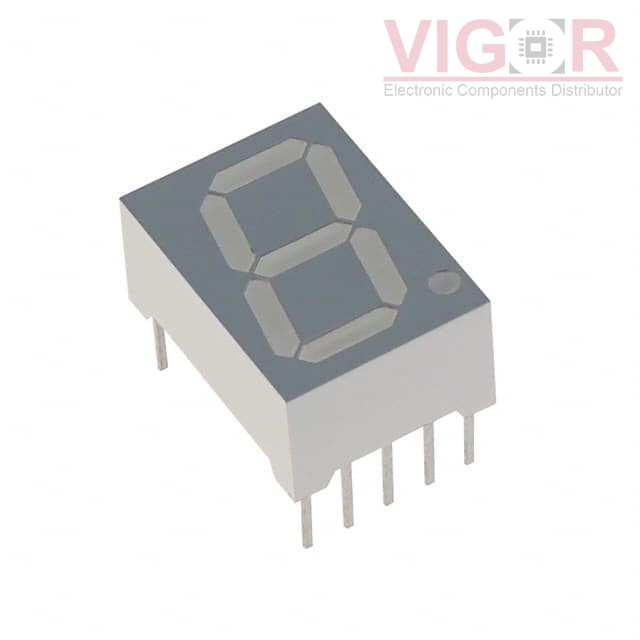

Image is for reference,
please contact us to get the real picture

Part No :

LSHD-5503

Manufacturer
Lite-On, Inc.
Description
DISPLAY 7SEG 0.56" SGL RED 10DIP
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
LSHD-5503 PDF
Availability
8442 pieces
Unit Price
$1.73000

Current price of LSHD-5503 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LSHD-5503 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Display Format:-
Number of Characters:1
Size / Dimension:0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm)
Digit/Alpha Size:0.56" (14.22mm)
Display Type:7-Segment
Common Pin:Common Cathode
Color:Red
Voltage - Forward (Vf) (Typ):2.1V
Current - Test:20mA
Millicandela Rating:17mcd
Wavelength - Peak:632nm
Power Dissipation (Max):70mW
Package / Case:10-DIP (0.600", 15.24mm)
