ACSA56-41SRWA-F01

ACSA56-41SRWA-F01

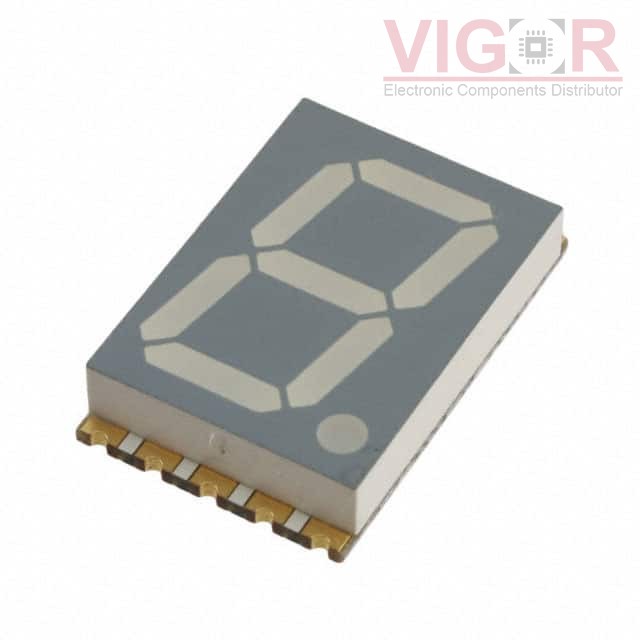

Image is for reference,
please contact us to get the real picture

Part No :

ACSA56-41SRWA-F01

Manufacturer
Kingbright
Description
DISPLAY 7SEG 0.56" SGL RED 10SMD
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
ACSA56-41SRWA-F01 PDF
Availability
5124 pieces
Unit Price
$3.38000

Current price of ACSA56-41SRWA-F01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACSA56-41SRWA-F01 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Display Format:-
Number of Characters:1
Size / Dimension:0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm)
Digit/Alpha Size:0.56" (14.22mm)
Display Type:7-Segment
Common Pin:Common Anode
Color:Red
Voltage - Forward (Vf) (Typ):1.85V
Current - Test:20mA
Millicandela Rating:26mcd
Wavelength - Peak:660nm
Power Dissipation (Max):75mW
Package / Case:10-SMD, No Lead
