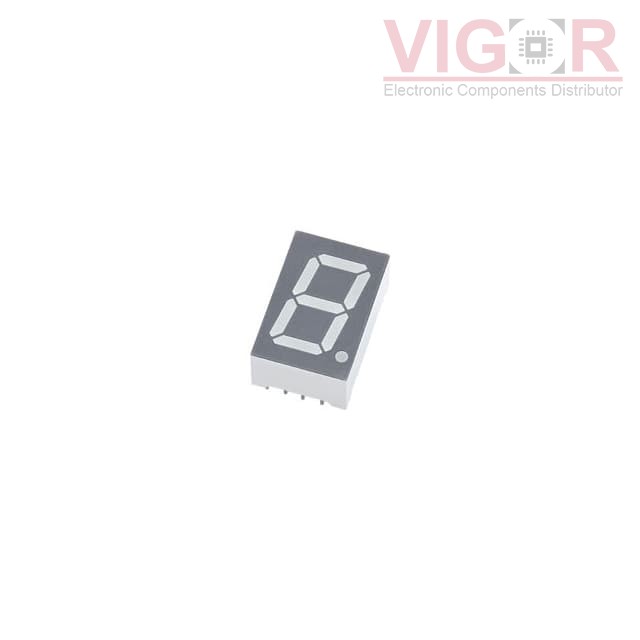

CDSC56Y1W

Image is for reference,
please contact us to get the real picture

Part No :: CDSC56Y1W

Manufacturer: ChromeLED

Description: DISPLAY 7SEG 0.56" SGL YELLOW 10

Catalog: Display Modules - LED Character and Numeric

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: CDSC56Y1W PDF

Availability: 0 pieces

Unit Price: ~~$0.99000~~

Current price of CDSC56Y1W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CDSC56Y1W Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Display Format:	-
Number of Characters:	1
Size / Dimension:	0.748" H x 0.500" W x 0.315" D (19.00mm x 12.70mm x 8.00mm)
Digit/Alpha Size:	0.56" (14.20mm)
Display Type:	7-Segment
Common Pin:	Common Cathode
Color:	Yellow
Voltage - Forward (Vf) (Typ):	2V
Current - Test:	10mA
Millicandela Rating:	4.7mcd
Wavelength - Peak:	-
Power Dissipation (Max):	75mW
Package / Case:	10-DIP
