CDSA80RR1W

CDSA80RR1W

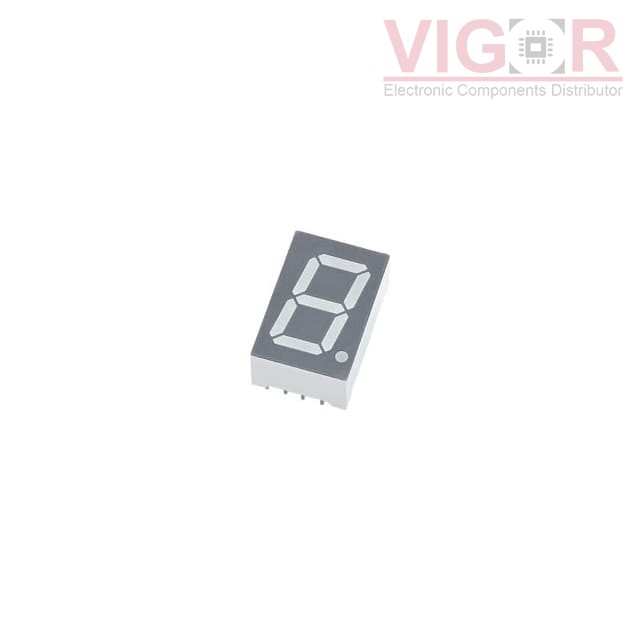

Image is for reference,
please contact us to get the real picture

Part No :

CDSA80RR1W

Manufacturer
ChromeLED
Description
DISPLAY 7SEG 0.80" SGL RED 16DIP
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
CDSA80RR1W PDF
Availability
0 pieces
Unit Price
$1.48000

Current price of CDSA80RR1W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CDSA80RR1W Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Display Format:-
Number of Characters:1
Size / Dimension:1.091" H x 0.787" W x 0.330" D (27.70mm x 20.00mm x 8.40mm)
Digit/Alpha Size:0.80" (20.32mm)
Display Type:7-Segment
Common Pin:Common Anode
Color:Red
Voltage - Forward (Vf) (Typ):2V
Current - Test:10mA
Millicandela Rating:24mcd
Wavelength - Peak:-
Power Dissipation (Max):72mW
Package / Case:16-DIP
