HDSP-B03E

HDSP-B03E

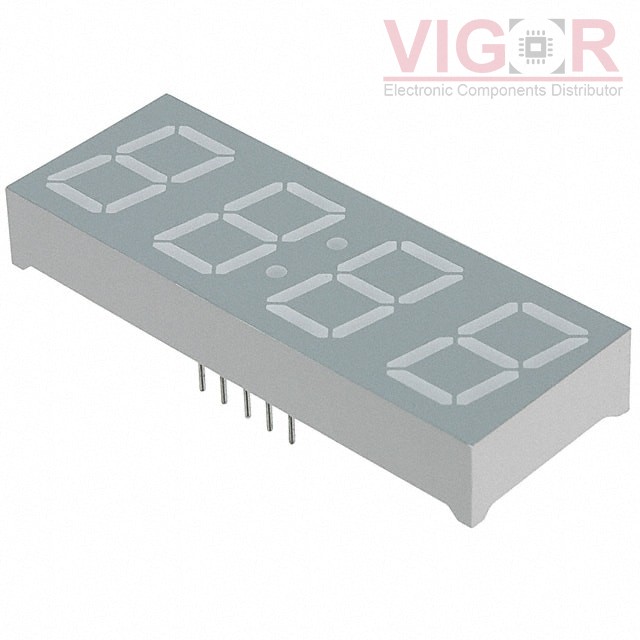

Image is for reference,
please contact us to get the real picture

Part No :

HDSP-B03E

Manufacturer
Broadcom
Description
DISP 7SEG 0.56" QUAD RED 12DIP
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
HDSP-B03E PDF
Availability
1387 pieces
Unit Price
$3.51000

Current price of HDSP-B03E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HDSP-B03E Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Display Format:-
Number of Characters:4
Size / Dimension:0.752" H x 2.016" W x 0.315" D (19.10mm x 51.20mm x 8.00mm)
Digit/Alpha Size:0.56" (14.22mm)
Display Type:7-Segment Clock
Common Pin:Common Cathode
Color:Red
Voltage - Forward (Vf) (Typ):2.05V
Current - Test:20mA
Millicandela Rating:5.5mcd
Wavelength - Peak:632nm
Power Dissipation (Max):65mW
Package / Case:12-DIP (0.600", 15.24mm)
