XDMR09A3

XDMR09A3

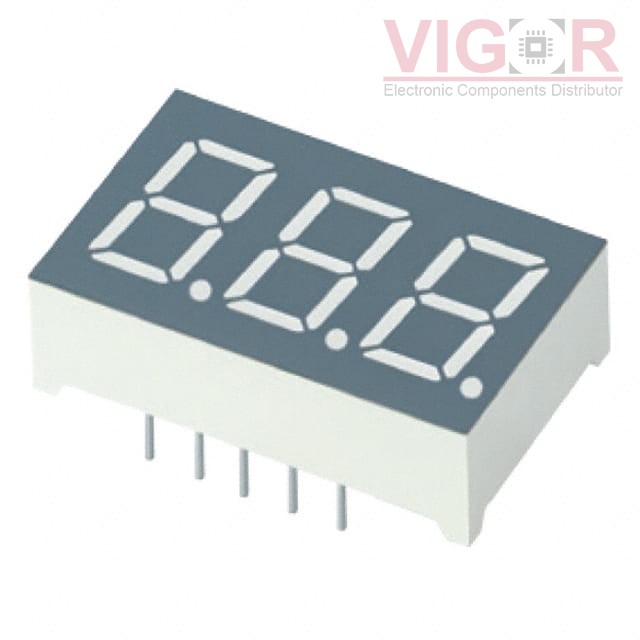

Image is for reference,
please contact us to get the real picture

Part No :

XDMR09A3

Manufacturer
SunLED
Description
DISPLAY 7SEG 0.36" TRP RED 12DIP
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Aug 26 - Aug 30 2025
DataSheet
XDMR09A3 PDF
Availability
0 pieces
Unit Price
$2.04703

Current price of XDMR09A3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XDMR09A3 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Display Format:-
Number of Characters:3
Size / Dimension:0.551" H x 0.886" W x 0.283" D (14.00mm x 22.50mm x 7.20mm)
Digit/Alpha Size:0.36" (9.14mm)
Display Type:7-Segment
Common Pin:Common Anode
Color:Red
Voltage - Forward (Vf) (Typ):1.8V
Current - Test:10mA
Millicandela Rating:5mcd
Wavelength - Peak:655nm
Power Dissipation (Max):75mW
Package / Case:12-DIP (0.400", 10.16mm), 11 Leads
