SDSAN40R2W

SDSAN40R2W

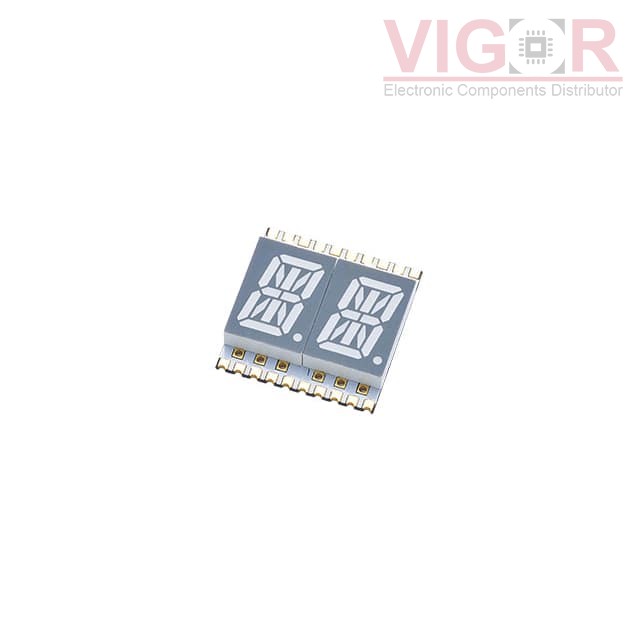

Image is for reference,
please contact us to get the real picture

Part No :

SDSAN40R2W

Manufacturer
ChromeLED
Description
DISPLAY 14SEG 0.4" SGL RED 16SMD
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
SDSAN40R2W PDF
Availability
20 pieces
Unit Price
$2.12000

Current price of SDSAN40R2W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDSAN40R2W Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Display Format:-
Number of Characters:1
Size / Dimension:0.748" H x 0.366" W x 0.157" D (19.00mm x 9.30mm x 4.00mm)
Digit/Alpha Size:0.40" (10.16mm)
Display Type:14-Segment, Alphanumeric
Common Pin:Common Anode
Color:Red
Voltage - Forward (Vf) (Typ):2V
Current - Test:20mA
Millicandela Rating:7mcd
Wavelength - Peak:644nm
Power Dissipation (Max):70mW
Package / Case:16-SMD, No Lead
