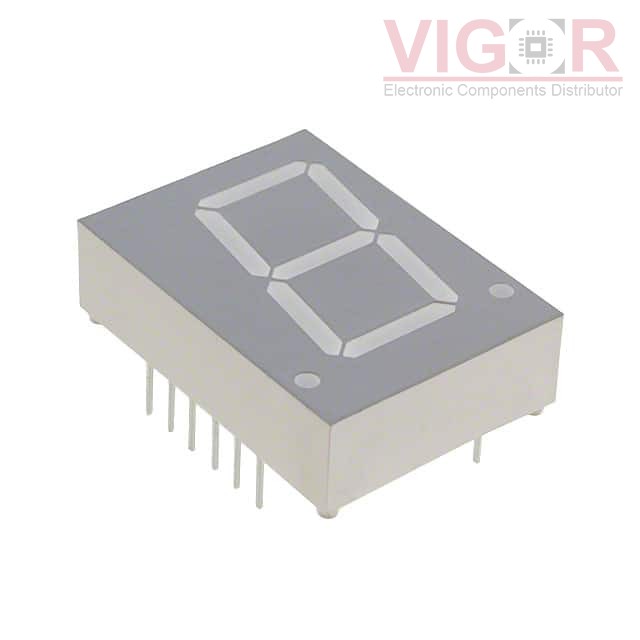

HDSP-N103

HDSP-N103

Image is for reference,
please contact us to get the real picture

Part No :

HDSP-N103

Manufacturer
Broadcom
Description
DISPLAY 7-SEG 0.8" SGL RED 18DIP
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
HDSP-N103 PDF
Availability
0 pieces
Unit Price
$2.93239

Current price of HDSP-N103 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HDSP-N103 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Display Format:-
Number of Characters:1
Size / Dimension:1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm)
Digit/Alpha Size:0.80" (20.32mm)
Display Type:7-Segment
Common Pin:Common Cathode
Color:Red
Voltage - Forward (Vf) (Typ):1.7V
Current - Test:5mA
Millicandela Rating:3.5mcd
Wavelength - Peak:645nm
Power Dissipation (Max):37mW
Package / Case:18-DIP (0.600", 15.24mm), 12 Leads
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

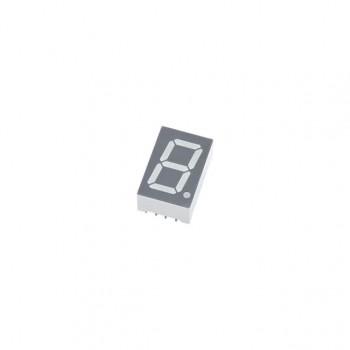

HOT CDSC18R1W

CDSC18R1W

DISPLAY 7SEG 1.80" SGL RED 10DIP

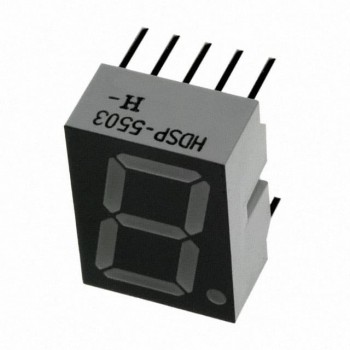

HOT HDSP-5503-GH000
