MAN8610

MAN8610

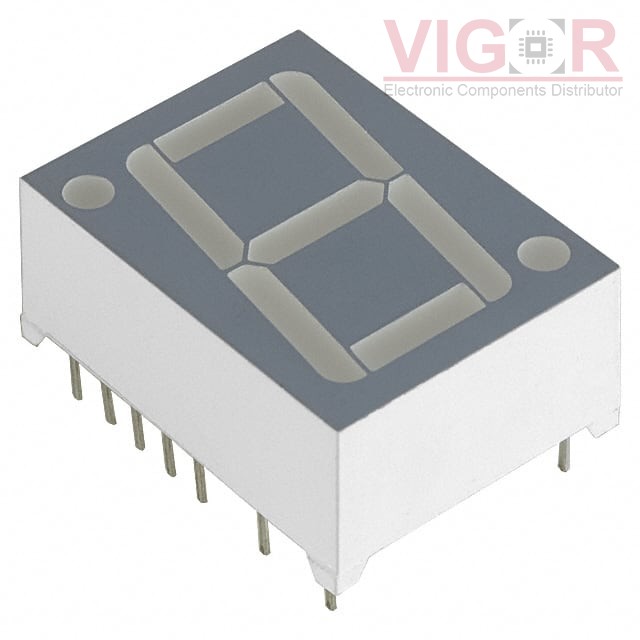

Image is for reference,
please contact us to get the real picture

Part No :

MAN8610

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
DISP 7SEG 0.8" SGL ORG-RED 18DIP
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
MAN8610 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of MAN8610 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAN8610 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Display Format:-
Number of Characters:1
Size / Dimension:0.985" H x 0.735" W x 0.415" D (25.02mm x 18.67mm x 10.54mm)
Digit/Alpha Size:0.80" (20.32mm)
Display Type:7-Segment
Common Pin:Common Anode
Color:Orange-Red
Voltage - Forward (Vf) (Typ):2.5V (Max)
Current - Test:20mA
Millicandela Rating:2.2mcd
Wavelength - Peak:630nm
Power Dissipation (Max):600mW
Package / Case:18-DIP (0.600", 15.24mm), 14 Leads
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CDTA30R1W

CDTA30R1W

DISPLAY 7SEG 0.30" TRI RED 12DIP
HOT CDTC40G1W

CDTC40G1W

DISPLAY 7SEG 0.40" TRI GREEN 24D

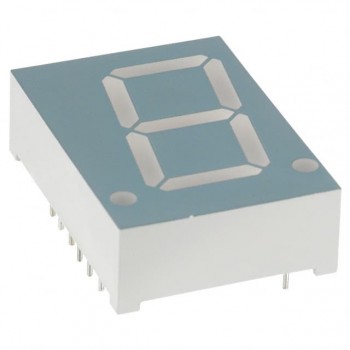

HOT LDS-A813RI
