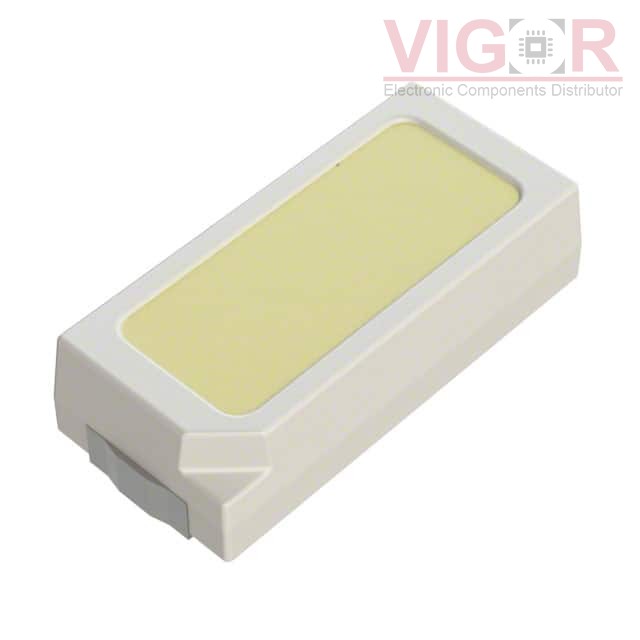

ASMD-CWG7-NX7G2

Image is for reference,
please contact us to get the real picture

Part No :: ASMD-CWG7-NX7G2

Manufacturer: Broadcom

Description: 3014 DFN 0.1W WHITE WSURFACE NIM

Catalog: LED Indication - Discrete

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: ASMD-CWG7-NX7G2 PDF

Availability: 87682 pieces

Unit Price: ~~$0.30000~~

Current price of ASMD-CWG7-NX7G2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ASMD-CWG7-NX7G2 Specifications

Type	Description
Series:	ASMD-CWG7
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	White, Warm
Configuration:	-
Lens Color:	-
Lens Transparency:	-
Millicandela Rating:	2700mcd
Lens Style:	Rectangle with Flat Top
Lens Size:	2.50mm x 1.15mm
Voltage - Forward (Vf) (Typ):	2.8V
Current - Test:	20mA
Viewing Angle:	120°
Mounting Type:	Surface Mount
Wavelength - Dominant:	-
Wavelength - Peak:	-
Features:	-
Package / Case:	1206 (3014 Metric)
Supplier Device Package:	3014
Size / Dimension:	3.00mm L x 1.40mm W
Height (Max):	0.90mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

5972002607F

LED RED DIFFUSED 1208 SMD R/A

HOT

L171L-RC

0805 DEEP RED SMD LED

HOT

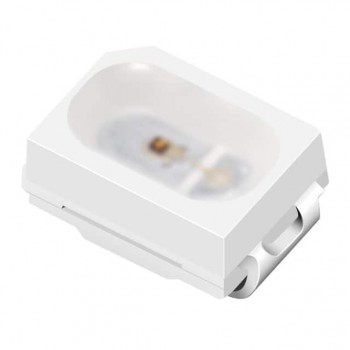

XZMDK105S
