HSMF-C114

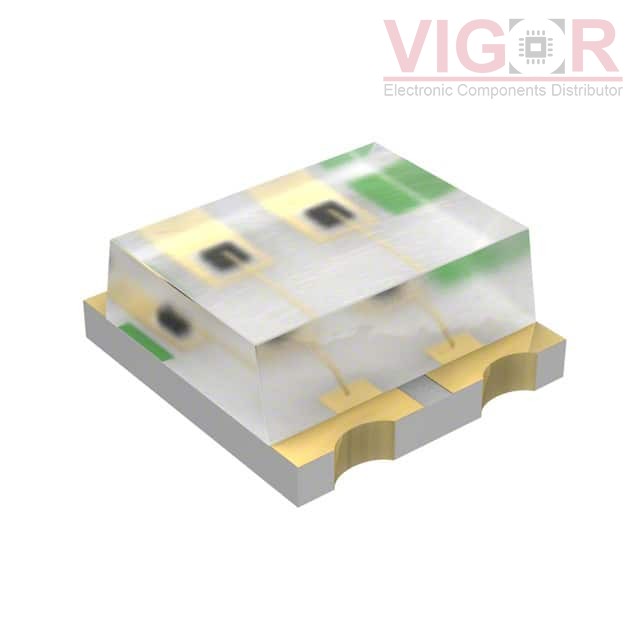

Image is for reference,
please contact us to get the real picture

Part No :: HSMF-C114

Manufacturer: Broadcom

Description: LED RGB DIFFUSED CHIP SMD

Catalog: LED Indication - Discrete

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: HSMF-C114 PDF

Availability: 21667 pieces

Unit Price: ~~$1.88000~~

Current price of HSMF-C114 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HSMF-C114 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Red, Green, Blue (RGB)
Configuration:	Common Anode
Lens Color:	White
Lens Transparency:	Diffused
Millicandela Rating:	85mcd Red, 180mcd Green, 70mcd Blue
Lens Style:	Rectangle with Flat Top
Lens Size:	1.10mm x 1.50mm
Voltage - Forward (Vf) (Typ):	1.9V Red, 3.4V Green, 3.4V Blue
Current - Test:	20mA Red, 20mA Green, 20mA Blue
Viewing Angle:	140° Red, 145° Green, 145° Blue
Mounting Type:	Surface Mount
Wavelength - Dominant:	626nm Red, 525nm Green, 470nm Blue
Wavelength - Peak:	637nm Red, 523nm Green, 468nm Blue
Features:	-
Package / Case:	0606 (1616 Metric)
Supplier Device Package:	Chip LED
Size / Dimension:	1.60mm L x 1.50mm W
Height (Max):	0.35mm

Please confirm the specifications of the products when ordering.
