AM23ID-F

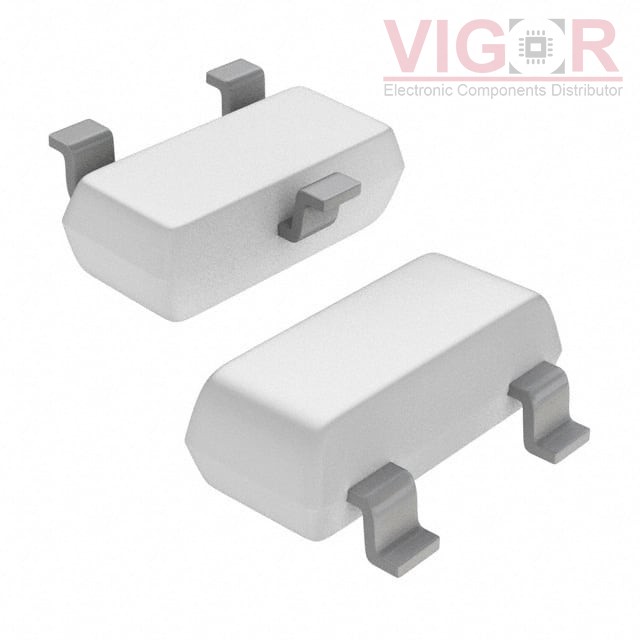

Image is for reference,
please contact us to get the real picture

Part No :: AM23ID-F

Manufacturer: Kingbright

Description: LED RED DIFFUSED SOT23-3 SMD

Catalog: LED Indication - Discrete

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: AM23ID-F PDF

Availability: 7228 pieces

Unit Price: ~~$0.50000~~

Current price of AM23ID-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM23ID-F Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Red
Configuration:	Standard
Lens Color:	Red
Lens Transparency:	Diffused
Millicandela Rating:	7mcd
Lens Style:	Rectangle with Flat Top
Lens Size:	3.00mm x 1.30mm
Voltage - Forward (Vf) (Typ):	2V
Current - Test:	20mA
Viewing Angle:	140°
Mounting Type:	Surface Mount
Wavelength - Dominant:	617nm
Wavelength - Peak:	627nm
Features:	-
Package / Case:	TO-236-3, SC-59, SOT-23-3
Supplier Device Package:	SOT-23-3
Size / Dimension:	3.00mm L x 1.30mm W
Height (Max):	1.20mm

Please confirm the specifications of the products when ordering.
