LS L296-N1Q2-1-Z

LS L296-N1Q2-1-Z

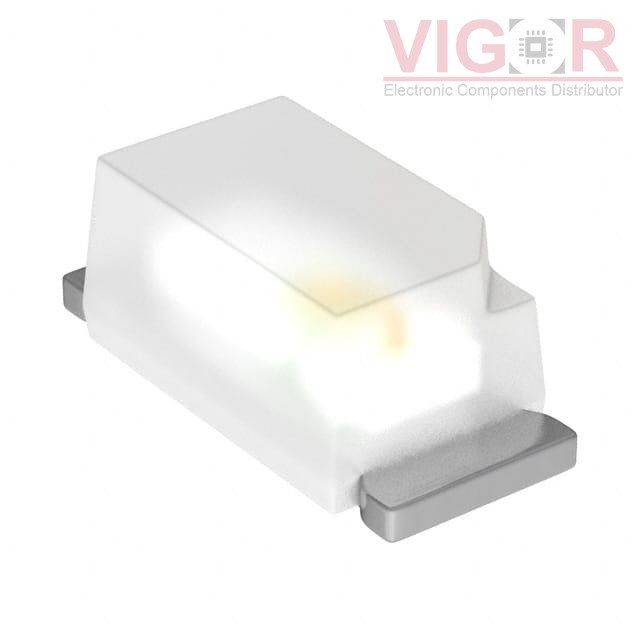

Image is for reference,
please contact us to get the real picture

Part No :

LS L296-N1Q2-1-Z

Manufacturer
OSRAM Opto Semiconductors, Inc.
Description
LED RED DIFFUSED 0603 SMD
Catalog
LED Indication - Discrete
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
LS L296-N1Q2-1-Z PDF
Availability
0 pieces
Unit Price
$0.08262

Current price of LS L296-N1Q2-1-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LS L296-N1Q2-1-Z Specifications
Type Description
Series:SMARTLED® 0603
Package:Tape & Reel (TR)
Part Status:Active
Color:Red
Configuration:Standard
Lens Color:White
Lens Transparency:Diffused
Millicandela Rating:70mcd
Lens Style:Rectangle with Flat Top
Lens Size:1.30mm x 0.80mm
Voltage - Forward (Vf) (Typ):2V
Current - Test:20mA
Viewing Angle:160°
Mounting Type:Surface Mount
Wavelength - Dominant:630nm
Wavelength - Peak:-
Features:-
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603
Size / Dimension:1.70mm L x 0.80mm W
Height (Max):0.65mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LO M676-Q2S1-24-Z

LO M676-Q2S1-24-Z

LED ORANGE CLEAR SMD
HOT VLMS20H2L1-GS08

VLMS20H2L1-GS08

LED RED CLEAR SMD MINILED SMD
HOT XZMEDGCBD56W

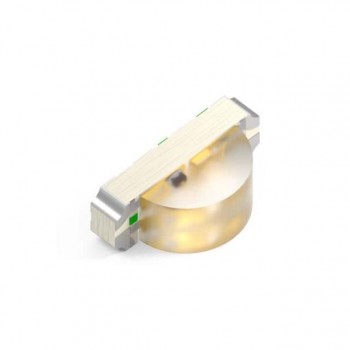

XZMEDGCBD56W
