CSB85BR2GT2C

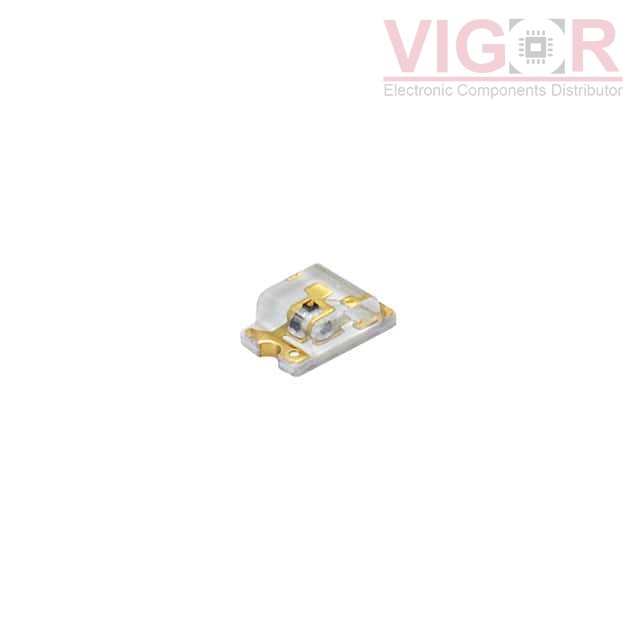

Image is for reference,
please contact us to get the real picture

Part No :: CSB85BR2GT2C

Manufacturer: ChromeLED

Description: LED RED/GRN CLEAR 0805 SMD

Catalog: LED Indication - Discrete

Shipped from: HK warehouse

Expected Shipping Date: Jul 24 - Jul 28 2025

DataSheet: CSB85BR2GT2C PDF

Availability: 20 pieces

Unit Price: ~~$0.45000~~

Current price of CSB85BR2GT2C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSB85BR2GT2C Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Color:	Green, Red
Configuration:	Standard
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	400mcd Green, 200mcd Red
Lens Style:	Rectangle with Flat Top
Lens Size:	1.30mm x 1.25mm
Voltage - Forward (Vf) (Typ):	3.1V Green, 2V Red
Current - Test:	20mA
Viewing Angle:	140°
Mounting Type:	Surface Mount
Wavelength - Dominant:	520nm Green, 630nm Red
Wavelength - Peak:	515nm Green, 640nm Red
Features:	-
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	Chip LED
Size / Dimension:	2.00mm L x 1.25mm W
Height (Max):	0.80mm
