HSMF-C15A

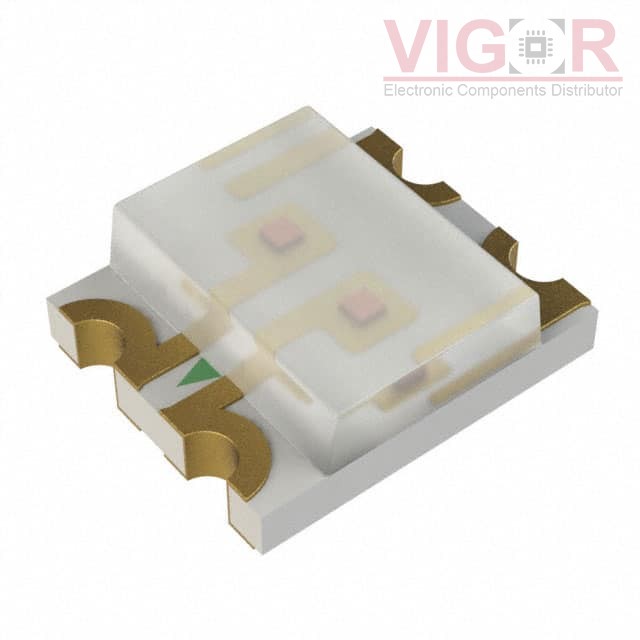

Image is for reference,
please contact us to get the real picture

Part No :: HSMF-C15A

Manufacturer: Broadcom

Description: LED AMBER/RED DIFFUSED SMD

Catalog: LED Indication - Discrete

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: HSMF-C15A PDF

Availability: 11671 pieces

Unit Price: ~~$1.04000~~

Current price of HSMF-C15A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HSMF-C15A Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Amber, Red
Configuration:	Independent
Lens Color:	White
Lens Transparency:	Diffused
Millicandela Rating:	55mcd Amber, 79mcd Red
Lens Style:	Rectangle with Flat Top
Lens Size:	2.00mm x 2.70mm
Voltage - Forward (Vf) (Typ):	1.9V Amber, 2V Red
Current - Test:	20mA Amber, 20mA Red
Viewing Angle:	170°
Mounting Type:	Surface Mount
Wavelength - Dominant:	592nm Amber, 632nm Red
Wavelength - Peak:	595nm Amber, 644nm Red
Features:	-
Package / Case:	4-SMD, No Lead
Supplier Device Package:	SMD
Size / Dimension:	3.20mm L x 2.70mm W
Height (Max):	1.20mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
