CS85BR1W

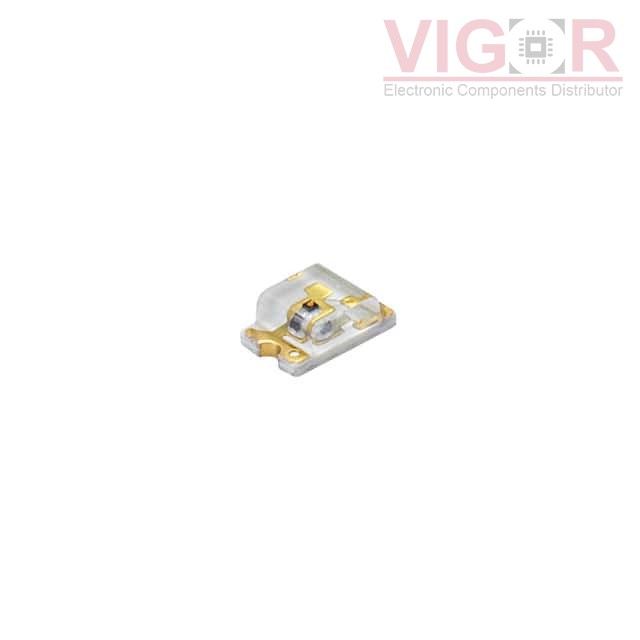

Image is for reference,
please contact us to get the real picture

Part No :: CS85BR1W

Manufacturer: ChromeLED

Description: LED RED DIFFUSED 0805 SMD

Catalog: LED Indication - Discrete

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: CS85BR1W PDF

Availability: 30 pieces

Unit Price: ~~$0.33000~~

Current price of CS85BR1W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CS85BR1W Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Color:	Red
Configuration:	Standard
Lens Color:	White
Lens Transparency:	Diffused
Millicandela Rating:	8mcd
Lens Style:	Rectangle with Flat Top
Lens Size:	1.40mm x 1.25mm
Voltage - Forward (Vf) (Typ):	2.1V
Current - Test:	20mA
Viewing Angle:	170°
Mounting Type:	Surface Mount
Wavelength - Dominant:	622nm
Wavelength - Peak:	635nm
Features:	-
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	Chip LED
Size / Dimension:	2.00mm L x 1.25mm W
Height (Max):	0.80mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
