HSMF-C146

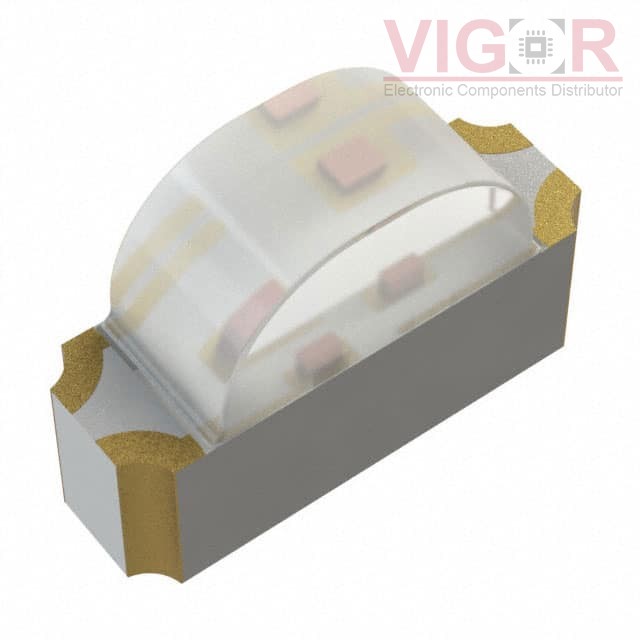

Image is for reference,
please contact us to get the real picture

Part No :: HSMF-C146

Manufacturer: Broadcom

Description: LED BLUE/RED CLEAR SMD R/A

Catalog: LED Indication - Discrete

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: HSMF-C146 PDF

Availability: 8923 pieces

Unit Price: ~~$1.59000~~

Current price of HSMF-C146 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HSMF-C146 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Blue, Red
Configuration:	Common Anode
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	75mcd Blue, 79mcd Red
Lens Style:	Rectangle with Domed Top
Lens Size:	2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ):	3.4V Blue, 2.3V Red
Current - Test:	20mA Blue, 20mA Red
Viewing Angle:	120°
Mounting Type:	Surface Mount, Right Angle
Wavelength - Dominant:	464nm Blue, 632nm Red
Wavelength - Peak:	459nm Blue, 644nm Red
Features:	-
Package / Case:	4-SMD
Supplier Device Package:	SMD
Size / Dimension:	3.00mm L x 2.00mm W
Height (Max):	1.10mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
