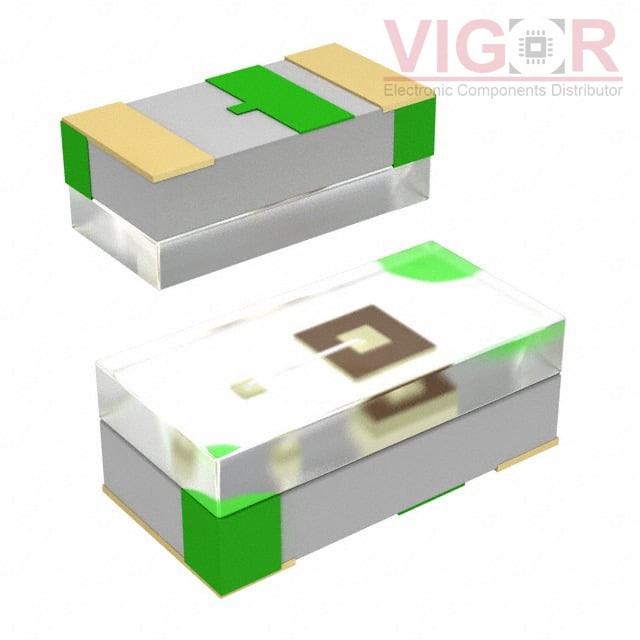

LY QH9F-P1R1-36

Image is for reference,
please contact us to get the real picture

Part No :: LY QH9F-P1R1-36

Manufacturer: OSRAM Opto Semiconductors, Inc.

Description: LED YELLOW DIFFUSED SMD

Catalog: LED Indication - Discrete

Shipped from: HK warehouse

Expected Shipping Date: Jul 03 - Jul 07 2025

DataSheet: LY QH9F-P1R1-36 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of LY QH9F-P1R1-36 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LY QH9F-P1R1-36 Specifications

Type	Description
Series:	CHIPLED 0402
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Color:	Yellow
Configuration:	Standard
Lens Color:	White
Lens Transparency:	Diffused
Millicandela Rating:	92.5mcd
Lens Style:	Rectangle with Flat Top
Lens Size:	1.00mm x 0.80mm
Voltage - Forward (Vf) (Typ):	2.2V
Current - Test:	5mA
Viewing Angle:	120°, 130°
Mounting Type:	Surface Mount
Wavelength - Dominant:	590nm
Wavelength - Peak:	595nm
Features:	-
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	-
Size / Dimension:	1.00mm L x 0.50mm W
Height (Max):	0.40mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

LN250RP

LED RED DIFF SQUARE TYPE LED T/H

HOT

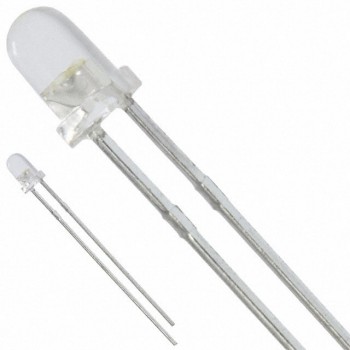

CMD204UWC
