Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of CXA1820-0000-000N00R450H is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|

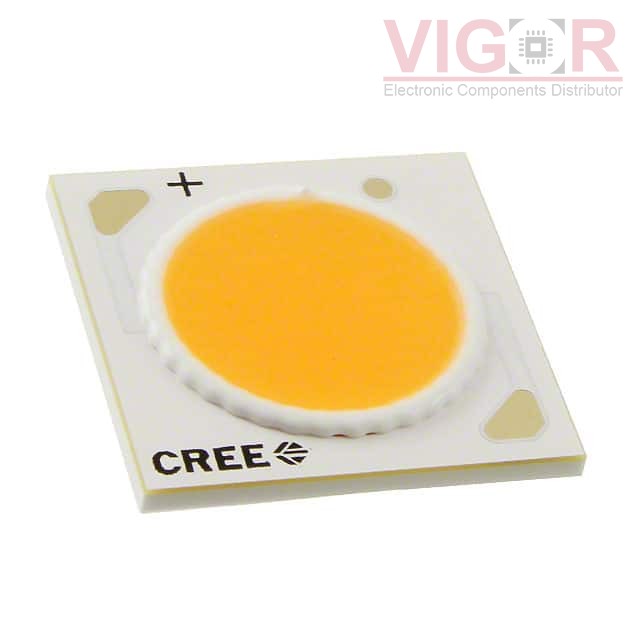

Series: | XLamp® CXA1820 |
Package: | Tray |
Part Status: | Active |
Type: | Chip On Board (COB) |
Color: | White, Cool |
CCT (K): | 5000K 2-Step MacAdam Ellipse |
Wavelength: | - |
Configuration: | Square |
Luminous Flux @ Current/Temperature: | 2690lm (2600lm ~ 2780lm) |
Current - Test: | 550mA |
Temperature - Test: | 85°C |
Voltage - Forward (Vf) (Typ): | 37V |
Lumens/Watt @ Current - Test: | 132 lm/W |
Current - Max: | 1.05A |
CRI (Color Rendering Index): | 70 |
Viewing Angle: | 115° |
Features: | - |
Size / Dimension: | 17.85mm L x 17.85mm W |
Height: | 1.70mm |
Light Emitting Surface (LES): | 12.00mm Dia |
Lens Type: | Flat |
