Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of BXRC-57C4001-D-73 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | Gen 7 Vero® 18 Array |
Package: | Tube |
Part Status: | Active |
Type: | Chip On Board (COB) |
Color: | White, Cool |
CCT (K): | 5700K 3-Step MacAdam Ellipse |
Wavelength: | - |
Configuration: | Round |
Luminous Flux @ Current/Temperature: | 4656lm (Typ) |
Current - Test: | 1.05A |
Temperature - Test: | 85°C |
Voltage - Forward (Vf) (Typ): | 28.3V |
Lumens/Watt @ Current - Test: | 157 lm/W |
Current - Max: | 2.1A |
CRI (Color Rendering Index): | 70 |
Viewing Angle: | 120° |
Features: | - |
Size / Dimension: | 36.20mm Dia |
Height: | 1.90mm |
Light Emitting Surface (LES): | 18.40mm Dia |
Lens Type: | Flat |

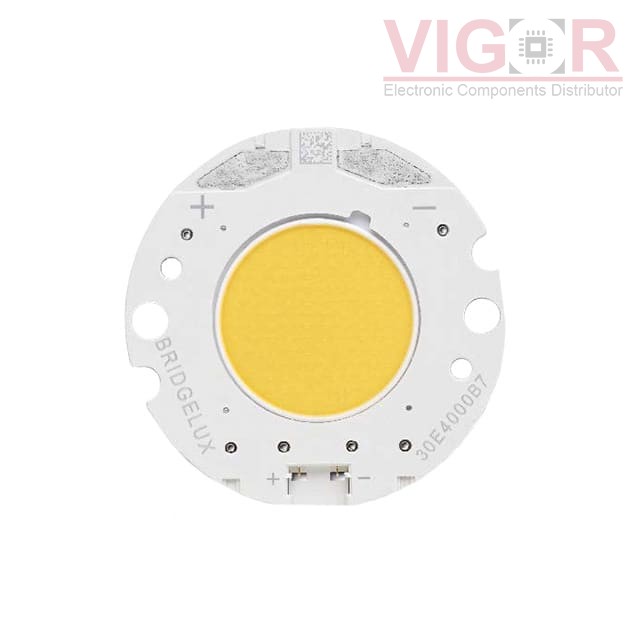

VERO 18D COOL WHITE LED ARRAY
