Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of CXA1310-0000-000N0YG430F is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | XLamp® CXA1310 |
Package: | Tray |
Part Status: | Obsolete |

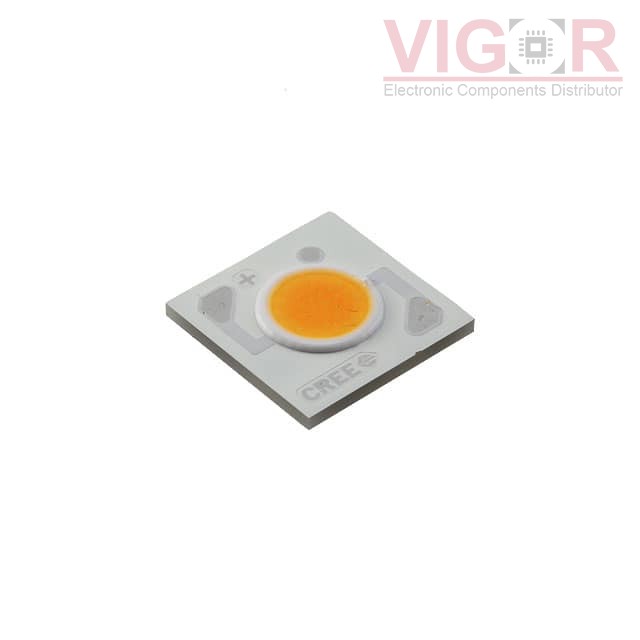

Type: | Chip On Board (COB) |
Color: | White, Warm |
CCT (K): | 3000K 4-Step MacAdam Ellipse |
Wavelength: | - |
Configuration: | Square |
Luminous Flux @ Current/Temperature: | 870lm (840lm ~ 900lm) |
Current - Test: | 350mA |
Temperature - Test: | 85°C |
Voltage - Forward (Vf) (Typ): | 36V |
Lumens/Watt @ Current - Test: | 69 lm/W |
Current - Max: | 525mA |
CRI (Color Rendering Index): | 93 |
Viewing Angle: | 115° |
Features: | - |
Size / Dimension: | 13.35mm L x 13.35mm W |
Height: | 1.55mm |
Light Emitting Surface (LES): | 6.00mm Dia |
Lens Type: | Flat |
