Type | Description |
---|---|
Series: | CXM-14 Gen3 |
Package: | Tray |
Part Status: | Active |
Type: | Chip On Board (COB) |
Color: | White, Cool |
CCT (K): | 5000K 5-Step MacAdam Ellipse |
Wavelength: | - |
Configuration: | Square |
Luminous Flux @ Current/Temperature: | 3275lm (Typ) |
Current - Test: | 720mA |
Temperature - Test: | 85°C |
Voltage - Forward (Vf) (Typ): | 34V |
Lumens/Watt @ Current - Test: | 134 lm/W |
Current - Max: | 1.45A |
CRI (Color Rendering Index): | 90 |
Viewing Angle: | 120° |
Features: | - |
Size / Dimension: | 18.50mm L x 18.50mm W |
Height: | 1.37mm |
Light Emitting Surface (LES): | 14.30mm Dia |
Lens Type: | Flat |

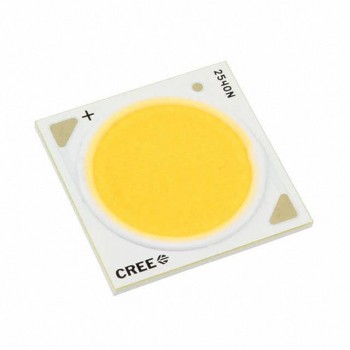

LED COB CXM14 COOL WHITE SQUARE
