Type | Description |
---|---|

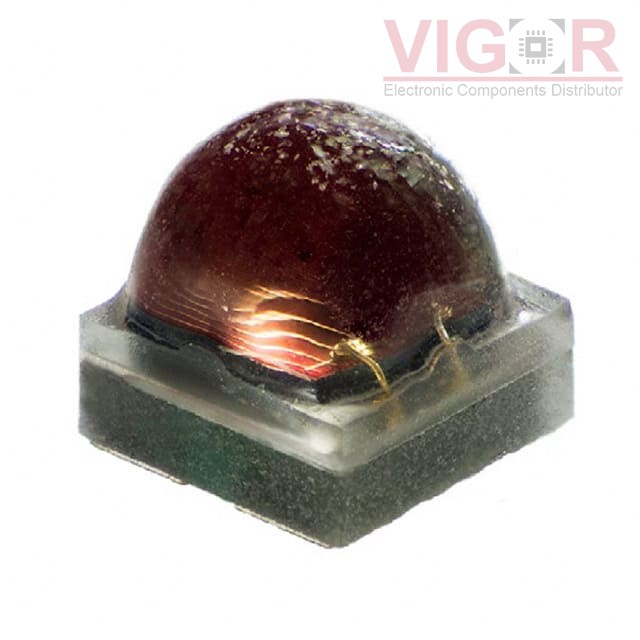

Series: | XLamp® XQ-E |
Package: | Tape & Reel (TR) |
Part Status: | Active |
Color: | Red-Orange |
Wavelength: | 613nm (610nm ~ 615nm) |
Current - Test: | 350mA |
Voltage - Forward (Vf) (Typ): | 2.2V |
Lumens/Watt @ Current - Test: | 109 lm/W |
Current - Max: | 1A |
Luminous Flux @ Current/Temperature: | 84lm (81lm ~ 87lm) |
Temperature - Test: | 25°C |
Viewing Angle: | 130° |
Mounting Type: | Surface Mount |
Package / Case: | 0606 (1616 Metric) |
Supplier Device Package: | SMD |
Size / Dimension: | 0.063" L x 0.063" W (1.60mm x 1.60mm) |
Height - Seated (Max): | 0.068" (1.73mm) |
