Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of XPEBAM-L1-R250-00801 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|

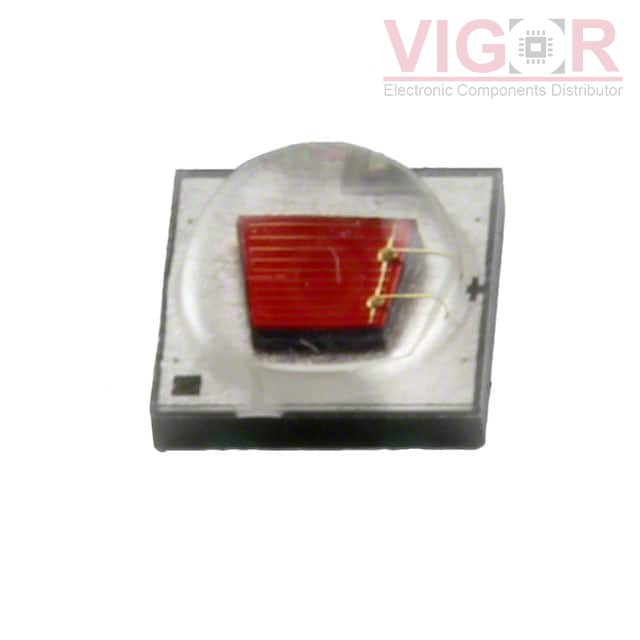

Series: | XLamp® XP-E2 |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Active |
Color: | Amber |
Wavelength: | 590nm (585nm ~ 595nm) |
Current - Test: | 350mA |
Voltage - Forward (Vf) (Typ): | 2.2V |
Lumens/Watt @ Current - Test: | 100 lm/W |
Current - Max: | 1A |
Luminous Flux @ Current/Temperature: | 77lm (74lm ~ 81lm) |
Temperature - Test: | 25°C |
Viewing Angle: | 130° |
Mounting Type: | Surface Mount |
Package / Case: | 1414 (3535 Metric) |
Supplier Device Package: | SMD |
Size / Dimension: | 0.136" L x 0.136" W (3.45mm x 3.45mm) |
Height - Seated (Max): | 0.094" (2.39mm) |
