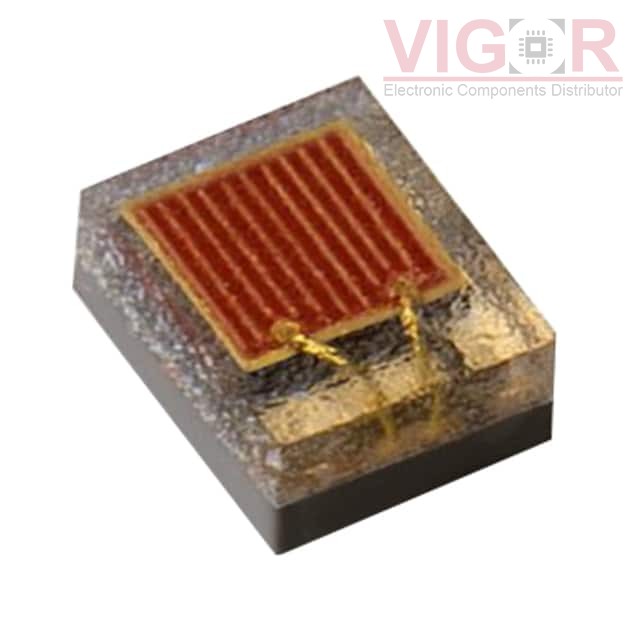

LXZ1-PH01

Image is for reference,
please contact us to get the real picture

Part No :: LXZ1-PH01

Manufacturer: Philips (LUMILEDS)

Description: LED LUXEON Z RED/ORN 615NM 2SMD

Catalog: LED Lighting - Color

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: LXZ1-PH01 PDF

Availability: 0 pieces

Unit Price: ~~$1.00048~~

Current price of LXZ1-PH01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LXZ1-PH01 Specifications

Type	Description
Series:	LUXEON Z
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Red-Orange
Wavelength:	615nm (610nm ~ 620nm)
Current - Test:	500mA
Voltage - Forward (Vf) (Typ):	2.2V
Lumens/Watt @ Current - Test:	58 lm/W
Current - Max:	700mA
Luminous Flux @ Current/Temperature:	64lm (56lm ~ 72lm)
Temperature - Test:	25°C
Viewing Angle:	145°
Mounting Type:	Surface Mount
Package / Case:	0705 (1713 Metric)
Supplier Device Package:	SMD
Size / Dimension:	0.067" L x 0.051" W (1.70mm x 1.30mm)
Height - Seated (Max):	0.026" (0.66mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
