Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of XBDAWT-00-0000-000000CE5 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | XLamp® XB-D |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Active |
Color: | White, Neutral |
CCT (K): | 4000K |
Flux @ 85°C, Current - Test: | 104lm (100lm ~ 107lm) |
Flux @ 25°C, Current - Test: | - |
Current - Test: | 350mA |
Voltage - Forward (Vf) (Typ): | 2.9V |
Lumens/Watt @ Current - Test: | 102 lm/W |
CRI (Color Rendering Index): | - |
Current - Max: | 1A |
Viewing Angle: | 115° |
Mounting Type: | Surface Mount |
Package / Case: | 1010 (2525 Metric) |
Supplier Device Package: | SMD |
Size / Dimension: | 0.096" L x 0.096" W (2.45mm x 2.45mm) |
Height - Seated (Max): | 0.078" (1.97mm) |

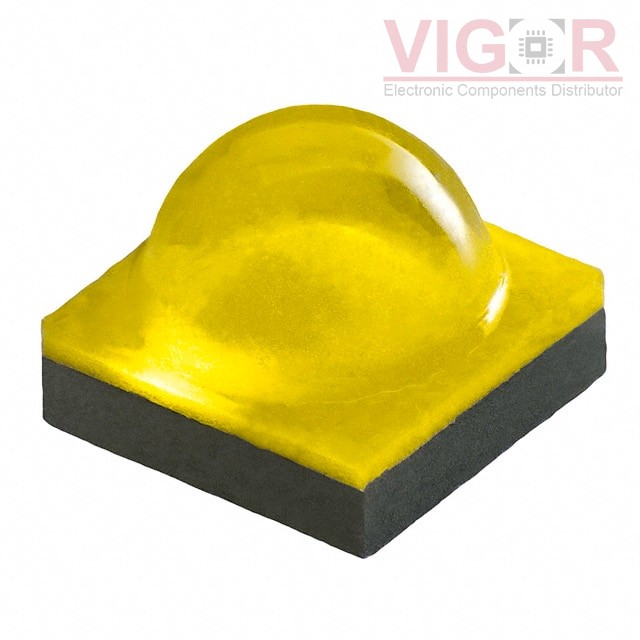

LED XLAMP NEUTRAL WHT 4000K 2SMD
