Type | Description |
---|---|
Series: | XLamp® MX-6 |
Package: | Tape & Reel (TR) |
Part Status: | Active |
Color: | White, Warm |
CCT (K): | 2700K |
Flux @ 85°C, Current - Test: | - |
Flux @ 25°C, Current - Test: | 77lm (74lm ~ 81lm) |
Current - Test: | 300mA |
Voltage - Forward (Vf) (Typ): | 3.3V |
Lumens/Watt @ Current - Test: | 78 lm/W |
CRI (Color Rendering Index): | 80 (Typ) |
Current - Max: | 1A |
Viewing Angle: | 120° |
Mounting Type: | Surface Mount |
Package / Case: | 2-SMD, Gull Wing Exposed Pad |
Supplier Device Package: | SMD |
Size / Dimension: | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
Height - Seated (Max): | 0.058" (1.48mm) |

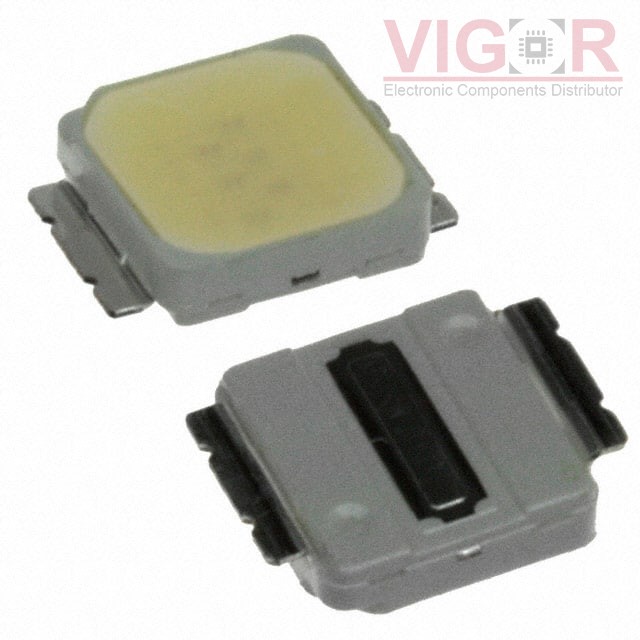

LED XLAMP WARM WHITE 2700K 2SMD
