Current price of MCE4WT-A2-0000-000KE4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|

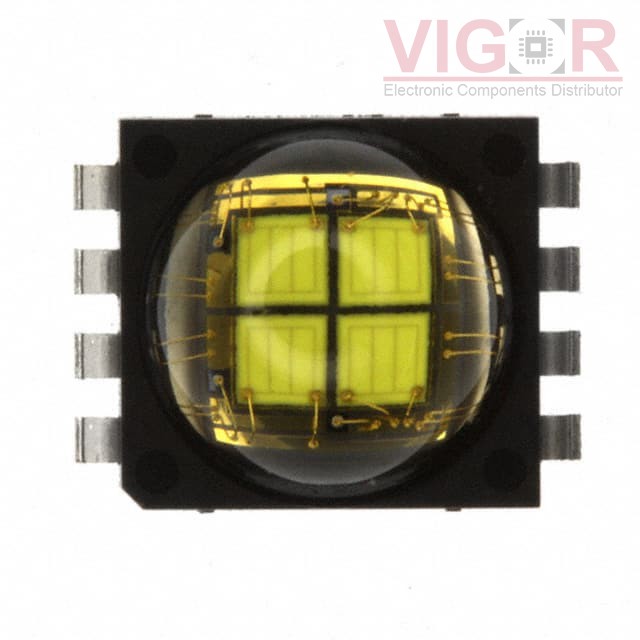

Series: | XLamp® MC-E |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Active |
Color: | White, Neutral |
CCT (K): | 4500K |
Flux @ 85°C, Current - Test: | - |
Flux @ 25°C, Current - Test: | 400lm (370lm ~ 430lm) |
Current - Test: | 4 x 350mA |
Voltage - Forward (Vf) (Typ): | 3.1V |
Lumens/Watt @ Current - Test: | 92 lm/W |
CRI (Color Rendering Index): | 75 (Typ) |
Current - Max: | 4 x 700mA |
Viewing Angle: | 110° |
Mounting Type: | Surface Mount |
Package / Case: | 8-SMD, Gull Wing Exposed Pad |
Supplier Device Package: | - |
Size / Dimension: | 0.276" L x 0.295" W (7.00mm x 7.50mm) |
Height - Seated (Max): | 0.181" (4.60mm) |
