Type | Description |
---|---|
Series: | PSK-S25B (25W) |
Package: | Box |
Part Status: | Active |
Type: | Enclosed |
Number of Outputs: | 1 |
Voltage - Input: | 90 ~ 264 VAC, 120 ~ 370 VDC |
Voltage - Output 1: | 5V |
Voltage - Output 2: | - |
Voltage - Output 3: | - |
Voltage - Output 4: | - |
Current - Output (Max): | 4A |
Power (Watts): | 20 W |
Applications: | Household Appliances, ITE (Commercial) |
Features: | Universal Input |
Operating Temperature: | -30°C ~ 70°C (With Derating) |
Efficiency: | 81% |
Mounting Type: | Through Hole |
Package / Case: | 4-DIP Module |
Size / Dimension: | 2.09" L x 1.19" W x 0.98" H (53.1mm x 30.3mm x 24.8mm) |
Approval Agency: | CB Scheme, EN, IEC, SIQ, TUV, UL |
Standard Number: | 55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61204-3; 62368-1 |

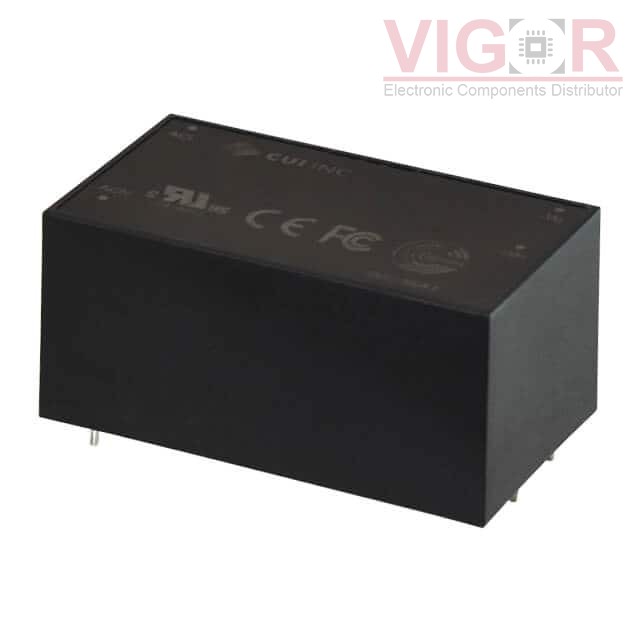

AC-DC, 25 W, 5 VDC, SINGLE OUTPU
