DPBW03F-12

DPBW03F-12

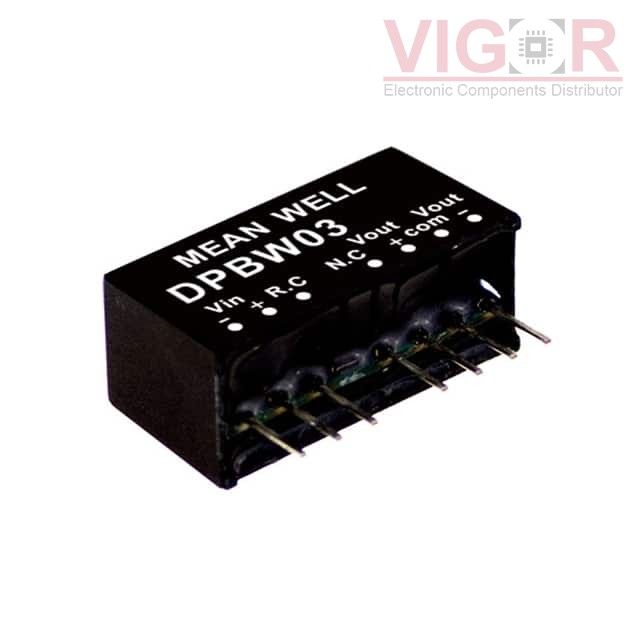

Image is for reference,
please contact us to get the real picture

Part No :

DPBW03F-12

Manufacturer
MEAN WELL
Description
DC DC CONVERTER +/-12V 3W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
DPBW03F-12 PDF
Availability
217 pieces
Unit Price
$9.93000

Current price of DPBW03F-12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DPBW03F-12 Specifications
Type Description
Series:DPBW03 (3W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):9V
Voltage - Input (Max):36V
Voltage - Output 1:12V
Voltage - Output 2:-12V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):125mA, 125mA
Power (Watts):3 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:Remote On/Off, OCP, SCP, UVLO
Operating Temperature:-40°C ~ 85°C (With Derating)
Efficiency:83%
Mounting Type:Through Hole
Package / Case:8-SIP Module, 7 Leads
Size / Dimension:0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
