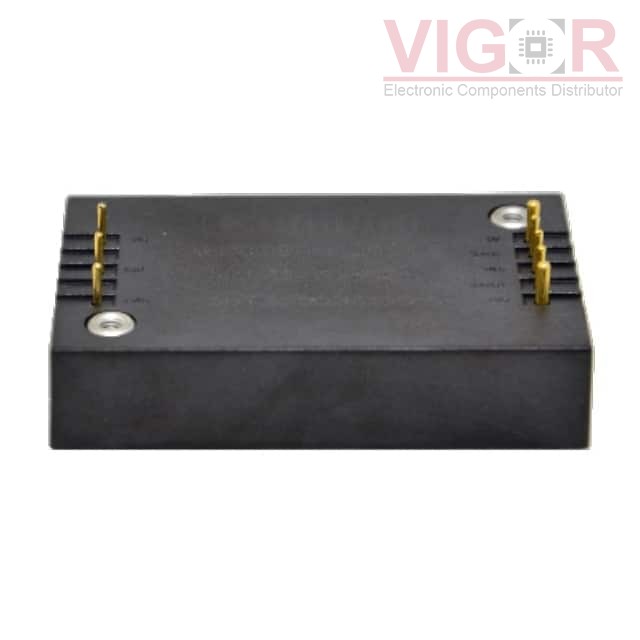

AM75QB-4848SH22-NZ-K

Image is for reference,
please contact us to get the real picture

Part No :: AM75QB-4848SH22-NZ-K

Manufacturer: DComponents

Description: DC DC CONVERTER 48V 75W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 24 - Jul 28 2025

DataSheet: AM75QB-4848SH22-NZ-K PDF

Availability: 214 pieces

Unit Price: ~~$96.70000~~

Current price of AM75QB-4848SH22-NZ-K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM75QB-4848SH22-NZ-K Specifications

Type	Description
Series:	AM75QB-NZ (75W)
Package:	Bulk
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	75V
Voltage - Output 1:	48V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.56A
Power (Watts):	75 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Heat Sink, Remote On/Off
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	92%
Mounting Type:	Through Hole
Package / Case:	Quarter Brick
Size / Dimension:	2.43" L x 1.58" W x 1.09" H (61.8mm x 40.2mm x 27.7mm)
Supplier Device Package:	Quarter Brick
Control Features:	-
Approval Agency:	CE
Standard Number:	-
