PDS1-S3-D5-M-TR

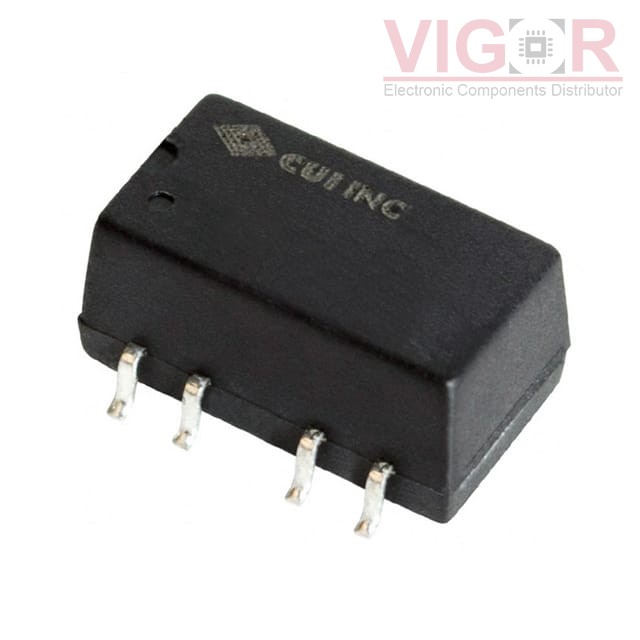

Image is for reference,
please contact us to get the real picture

Part No :: PDS1-S3-D5-M-TR

Manufacturer: CUI Inc.

Description: DC DC CONVERTER +/-5V 1W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: PDS1-S3-D5-M-TR PDF

Availability: 1881 pieces

Unit Price: ~~$4.28400~~

Current price of PDS1-S3-D5-M-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PDS1-S3-D5-M-TR Specifications

Type	Description
Series:	PDS1-M (1W)
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	2.97V
Voltage - Input (Max):	3.63V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	100mA, 100mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	78%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module, 6 Leads
Size / Dimension:	0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	EN
Standard Number:	55024; 55032 Class A
