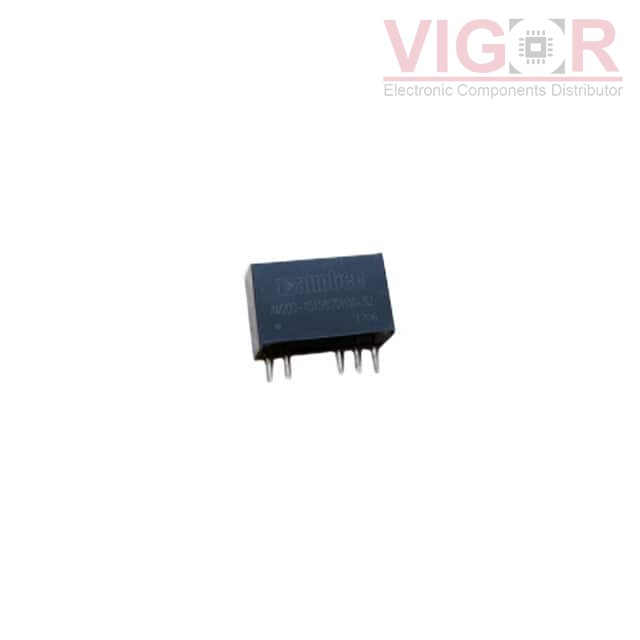

AM2DG-12158.7DH30-NZ

Image is for reference,
please contact us to get the real picture

Part No :

AM2DG-12158.7DH30-NZ

Manufacturer
DComponents
Description
DC DC CONVERTER 15V -8.7V 2.1W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
AM2DG-12158.7DH30-NZ PDF
Availability
109 pieces
Unit Price
$5.03000

Current price of AM2DG-12158.7DH30-NZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:AM2DG-NZ (2.1W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):12V
Voltage - Input (Max):12V
Voltage - Output 1:15V
Voltage - Output 2:-8.7V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):80mA, 40mA
Power (Watts):2.1 W
Voltage - Isolation:3 kV
Applications:ITE (Commercial)
Features:-
Operating Temperature:-40°C ~ 85°C (With Derating)
Efficiency:80%
Mounting Type:Through Hole
Package / Case:7-SIP Module, 5 Leads
Size / Dimension:0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
Supplier Device Package:-
Control Features:-
Approval Agency:cURus, UL
Standard Number:-
