AM1PS-0503SH30JZ

AM1PS-0503SH30JZ

Image is for reference,
please contact us to get the real picture

Part No :

AM1PS-0503SH30JZ

Manufacturer
DComponents
Description
DC DC CONVERTER 3.3V 1W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
AM1PS-0503SH30JZ PDF
Availability
392 pieces
Unit Price
$2.61000

Current price of AM1PS-0503SH30JZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM1PS-0503SH30JZ Specifications
Type Description
Series:AM1PS-JZ (1W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:1
Voltage - Input (Min):4.5V
Voltage - Input (Max):5.5V
Voltage - Output 1:3.3V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):303mA
Power (Watts):1 W
Voltage - Isolation:3 kV
Applications:ITE (Commercial)
Features:-
Operating Temperature:-40°C ~ 85°C (With Derating)
Efficiency:74%
Mounting Type:Through Hole
Package / Case:8-DIP Module, 4 Leads
Size / Dimension:0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.2mm)
Supplier Device Package:-
Control Features:-
Approval Agency:cULus, cURus
Standard Number:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT V72B24C250B

V72B24C250B

DC DC CONVERTER 24V 250W
HOT V28A28C200BG3

V28A28C200BG3

DC DC CONVERTER 28V 200W
HOT MEZDPD3603A-8589

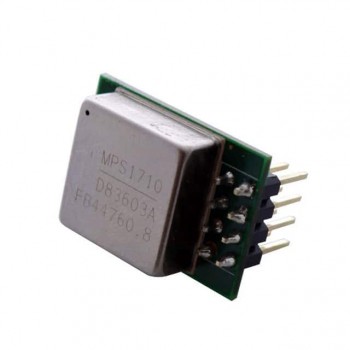

MEZDPD3603A-8589
