PTH12040WAZT

PTH12040WAZT

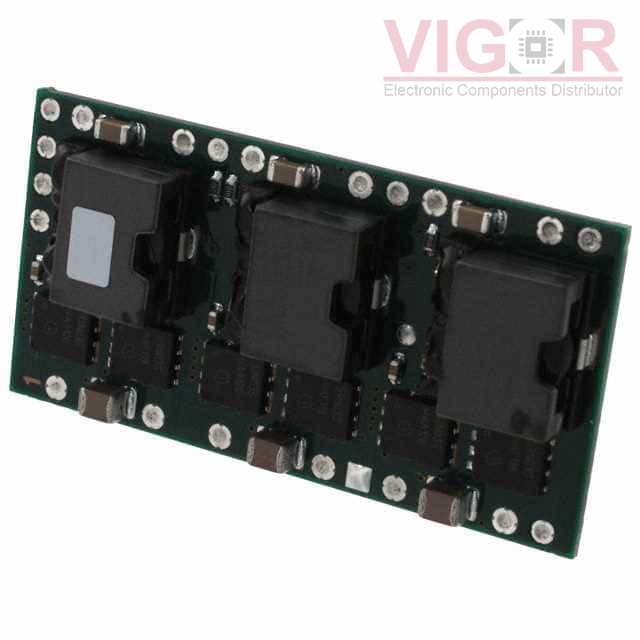

Image is for reference,
please contact us to get the real picture

Part No :

PTH12040WAZT

Manufacturer
Texas Instruments
Description
DC DC CONVERTER 0.8-5.5V 275W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
PTH12040WAZT PDF
Availability
287 pieces
Unit Price
$73.29630

Current price of PTH12040WAZT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PTH12040WAZT Specifications
Type Description
Series:PTH12040
Package:Tube
Part Status:Active
Type:Non-Isolated PoL Module
Number of Outputs:1
Voltage - Input (Min):8V
Voltage - Input (Max):14V
Voltage - Output 1:0.8 ~ 5.5V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):50A
Power (Watts):-
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:Remote On/Off, OCP, OTP, UVLO
Operating Temperature:-40°C ~ 85°C
Efficiency:96%
Mounting Type:Surface Mount
Package / Case:20-SMD Module
Size / Dimension:2.04" L x 1.04" W x 0.37" H (51.8mm x 26.5mm x 9.4mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
