R1DX-0515/H-TRAY

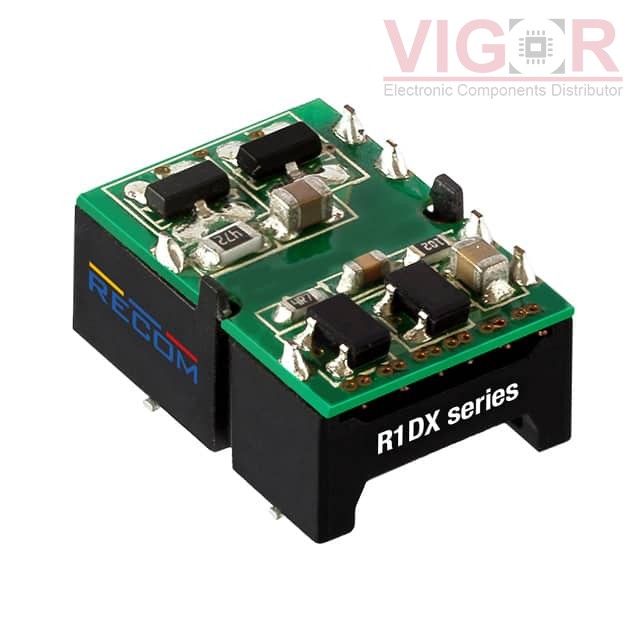

Image is for reference,
please contact us to get the real picture

Part No :: R1DX-0515/H-TRAY

Manufacturer: RECOM Power

Description: DC DC CONVERTER +/-15V 1W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: R1DX-0515/H-TRAY PDF

Availability: 361 pieces

Unit Price: ~~$5.00000~~

Current price of R1DX-0515/H-TRAY is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

R1DX-0515/H-TRAY Specifications

Type	Description
Series:	ECONOLINE R1DX (1W)
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	15V
Voltage - Output 2:	-15V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	33mA, 33mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	OCP
Operating Temperature:	-40°C ~ 95°C
Efficiency:	80%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module, 6 Leads
Size / Dimension:	0.60" L x 0.42" W x 0.33" H (15.2mm x 10.7mm x 8.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
