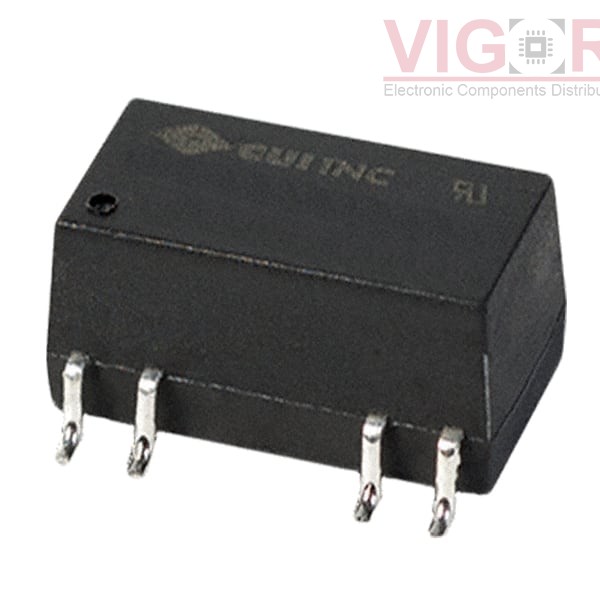

PES1-S5-D12-M-TR

Image is for reference,
please contact us to get the real picture

Part No :

PES1-S5-D12-M-TR

Manufacturer
CUI Inc.
Description
DC DC CONVERTER +/-12V 1W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
PES1-S5-D12-M-TR PDF
Availability
478 pieces
Unit Price
$6.02000

Current price of PES1-S5-D12-M-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:PES1-M (1W)
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):4.5V
Voltage - Input (Max):5.5V
Voltage - Output 1:12V
Voltage - Output 2:-12V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):42mA, 42mA
Power (Watts):1 W
Voltage - Isolation:3 kV
Applications:ITE (Commercial)
Features:SCP
Operating Temperature:-40°C ~ 105°C (With Derating)
Efficiency:81%
Mounting Type:Surface Mount
Package / Case:8-SMD Module, 6 Leads
Size / Dimension:0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)
Supplier Device Package:-
Control Features:-
Approval Agency:CB Scheme, EN, IEC, UL
Standard Number:55024; 55032 Class A; 60950-1
